OEM#: 1LPP2New OEM Original Outright

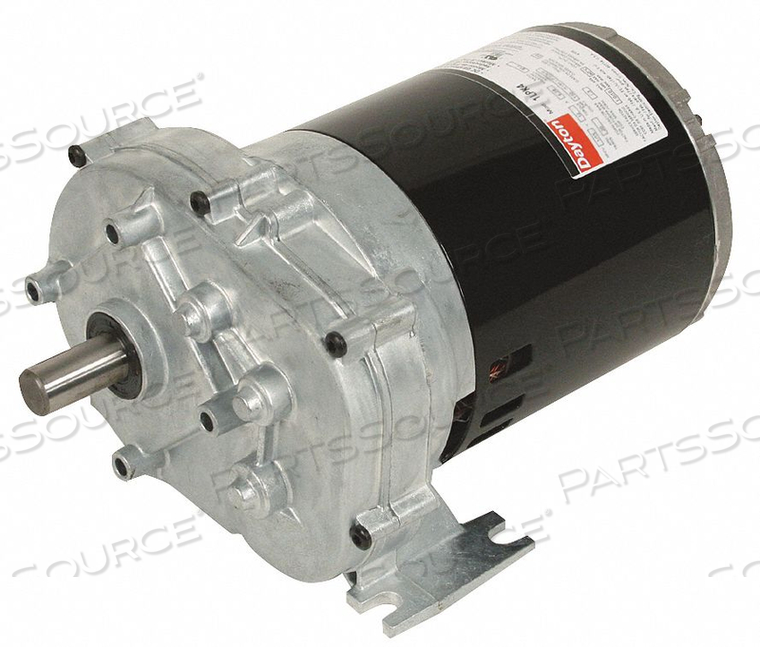

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE OPEN DRIPPROOF, NAMEPLATE SPEED 60 RPM, MAXIMUM TORQUE 200 by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,044.39 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1lpp2
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE OPEN DRIPPROOF, NAMEPLATE SPEED 60 RPM, MAXIMUM TORQUE 200 by DAYTON ELECTRIC MANUFACTURING CO
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE OPEN DRIPPROOF, NAMEPLATE SPEED 60 RPM, MAXIMUM TORQUE 200 by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1LPP2
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE OPEN DRIPPROOF, NAMEPLATE SPEED 60 RPM, MAXIMUM TORQUE 200 by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,044.39 each

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE OPEN DRIPPROOF, NAMEPLATE SPEED 60 RPM, MAXIMUM TORQUE 200 IN-LB, OVERHUNG LOAD CAPACITY 190 FT-LB, ROTATION CW/CCW, OUTPUT SHAFT HEIGHT 3 IN, MOUNTING ORIENTATION ANY ANGLE, OPERATING VOLTAGE 115V AC, INVERTER RATED NO, GEAR RATIO 29:1, BRAKE TYPE NONE, SHAFT ORIENTATION PARALLEL, MOTOR INSULATION CLASS B

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1LPP2 Key Specs
Item
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE SPLIT-PHASE, MOTOR ENCLOSURE OPEN DRIPPROOF, NAMEPLATE SPEED 60 RPM, MAXIMUM TORQUE 200
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1LPP2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Porous Bronze Sleeve on Case, Ball on Motor
Country of Origin
USA
Finish
Unpainted
Full Load Amps
3.9
Gear Case Material
Die Cast Zinc
Gear Material
Steel/Phenolic
Gear Ratio
29:1
Gearmotor Brake Type
None
Gearmotor Enclosure
Open Dripproof
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115V AC
Gears
Phenolic/Steel
Housing
Die Cast Zinc
Hz
60 Hz
Input HP
1/4 hp
Insulation Class
B
Keyway Size Type
#605 Woodruff Key
Length Less Shaft
9 5/8 in
Lubrication
Grease Filled
Max. Ambient Temp.
40 Degrees C
Max. Torque
200.0 in-lb
Motor Type
Split-Phase
Nameplate RPM
60 RPM
Overhung Load
190 lb
Reversible Shaft Output
No
Seals
Lip Type on Input and Output Shaft
Shaft Dia. (Dimension U)
3/4 in
Shaft Length (Dimension V)
1.5 in
Standards
UL Recognized, C-UL Recognized
Thermal Protection
None
