OEM#: 1LNH2New OEM Original Outright

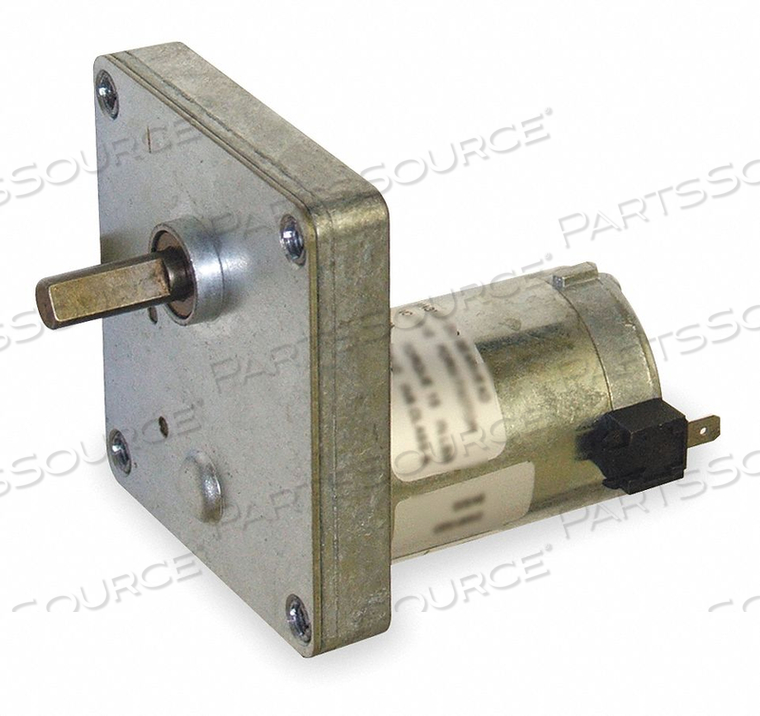

DC GEARMOTOR 50 RPM 12V TENV by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$95.15 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1lnh2
DC GEARMOTOR 50 RPM 12V TENV by DAYTON ELECTRIC MANUFACTURING CO
DC GEARMOTOR 50 RPM 12V TENV by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1LNH2
DC GEARMOTOR 50 RPM 12V TENV by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$95.15 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1LNH2 Key Specs
Item
DC GEARMOTOR 50 RPM 12V TENV
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1LNH2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Food Processing and Restaurant Equipment, Switch Gear, Valve Actuators, Vending
Bearings
Porous Bronze on Gear Case and Motor
Full Load Amps
1.1 A
Gear Case
Die Cast Zinc
Gear Ratio
74:1
Gear Type
Spur
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Mounting Position
All Angle
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
DC Gearmotor
Housing Material
Die Cast Zinc
Input HP
1/90
Insulation Class
B
Length Less Shaft
3 1/4 in
Lubrication
Grease Filled
Max. Ambient Temp.
40 Degrees C
Max. Torque
10.0 in-lb
Motor Type
Permanent Magnet DC
Nameplate RPM
50 RPM
Overall Length
4 1/16 in
Overhung Load
13 lb
Rear Shaft Encoder/Pulse Generator Mounting
No
Reversible Shaft Output
No
Shaft Dia. (Dimension U)
5/16"
Shaft Length (Dimension V)
13/16"
Thermal Protection
None
