OEM#: 1L524New OEM Original Outright

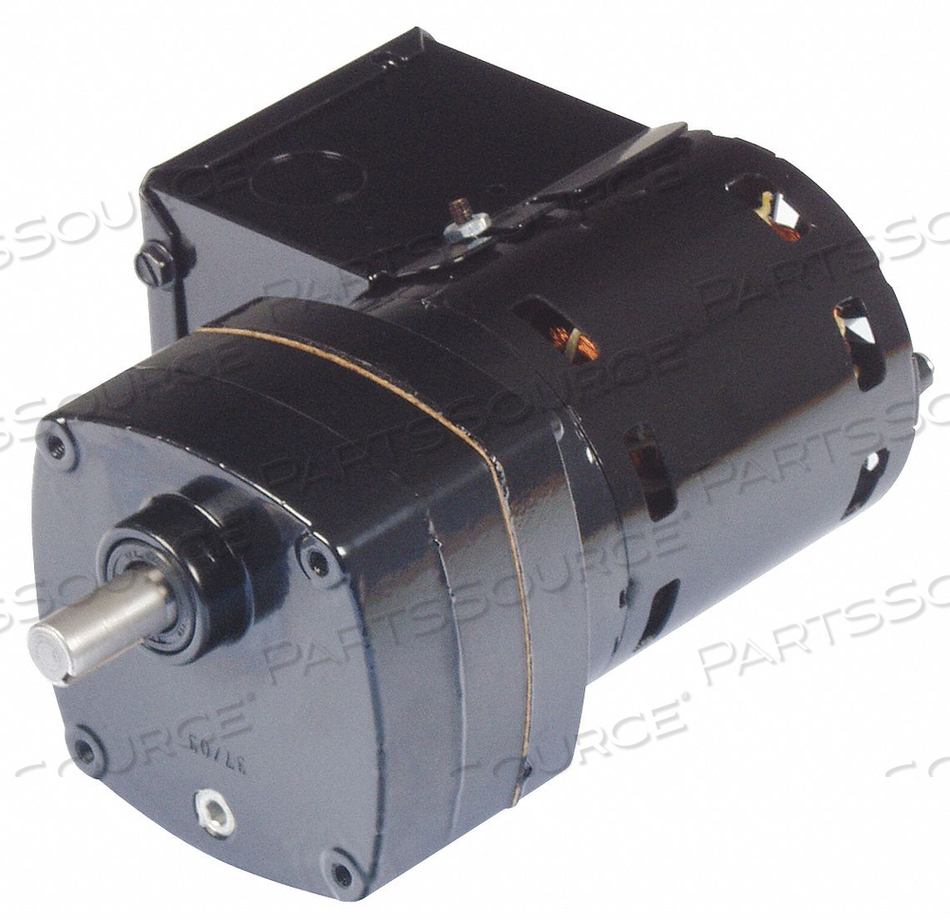

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE OPEN AIR-OVER, NAMEPLATE SPEED 32 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$612.48 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1l524
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE OPEN AIR-OVER, NAMEPLATE SPEED 32 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE OPEN AIR-OVER, NAMEPLATE SPEED 32 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1L524
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE OPEN AIR-OVER, NAMEPLATE SPEED 32 RPM, MAXIMU by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$612.48 each

AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE OPEN AIR-OVER, NAMEPLATE SPEED 32 RPM, MAXIMUM TORQUE 86 IN-LB, OVERHUNG LOAD CAPACITY 90 FT-LB, ROTATION CW/CCW, MOUNTING ORIENTATION ANY ANGLE, OPERATING VOLTAGE 230V AC, INVERTER RATED NO, GEAR RATIO 49:1, BRAKE TYPE NONE, SHAFT ORIENTATION PARALLEL, INCLUDES CAPACITOR CAPACITOR INCLUDED, APPLICATION WASHDOWN

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1L524 Key Specs
Item
AC GEARMOTOR, NUMBER OF OUTPUT SHAFTS 1, MOTOR TYPE PERMANENT SPLIT CAPACITOR, MOTOR ENCLOSURE OPEN AIR-OVER, NAMEPLATE SPEED 32 RPM, MAXIMU
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1L524
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Heavy Duty Needle on Case, Ball on Motor
Capacitor Required
Included
Country of Origin
USA
Full Load Amps
0.3
Gear Material
Steel or Heat Treated Powdered Metal
Gear Ratio
49:1
Gear Type
Helical First Stage/Spur
Gearmotor Brake Type
None
Gearmotor Enclosure
Open
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gears
1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
Hz
60/50 Hz
Input HP
1/20 hp
Length Less Shaft
8 1/4 in
Lubrication
Permanent Heavy Duty Gear Oil
Max. Ambient Temp.
40 Degrees C
Max. Torque
86.0 in-lb
Motor Type
PSC
Nameplate RPM
32 RPM
Overhung Load
90 lb
Seals
Spring Loaded Lip Type on Input and Output Shaft
Shaft Dia. (Dimension U)
1/2"
Shaft Length (Dimension V)
1"
Standards
UL Recognized, C-UL Recognized, CE Certified
Thermal Protection
None
