OEM#: 1AHD3New OEM Original Outright

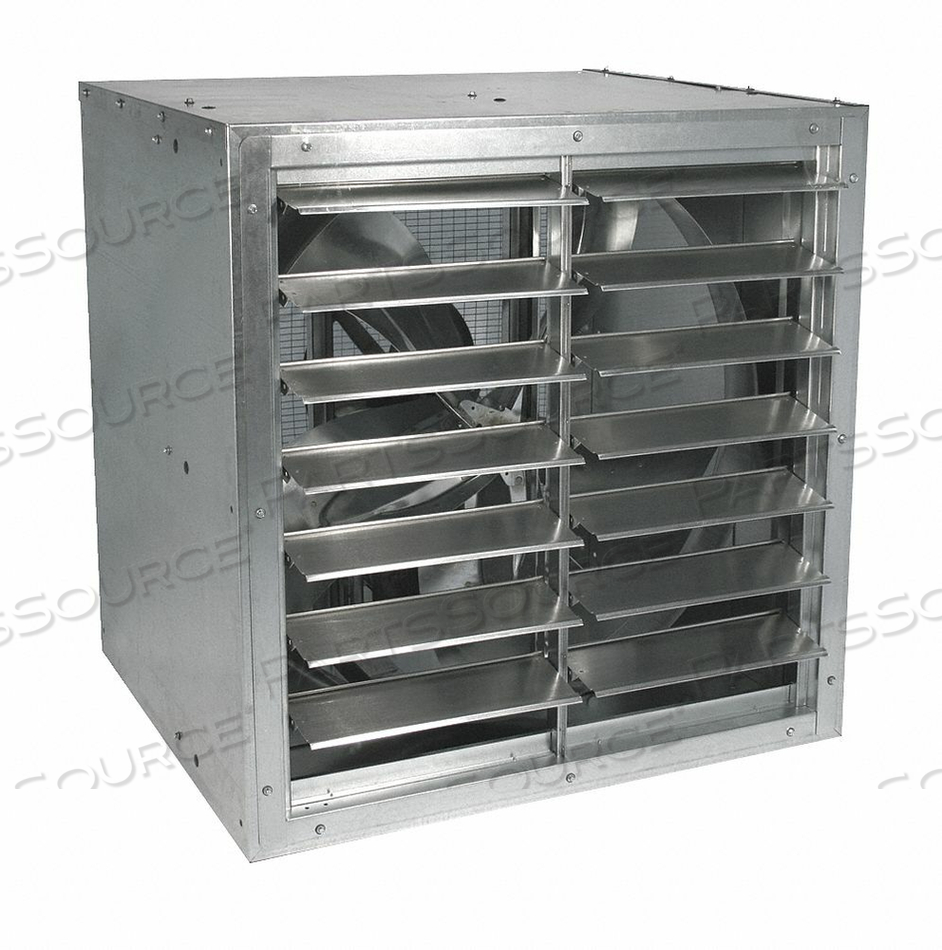

CABINET EXHAUST FAN 42 115/208-230 V by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$3,818.74 each
OEM#: 1AHD3CABINET EXHAUST FAN 42 115/208-230 V by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$3,818.74 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1AHD3 Key Specs
Item
CABINET EXHAUST FAN 42 115/208-230 V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1AHD3
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Assembly
Assembled
Bearing Type
Regreasable Cast Pillow Block
Blade Diameter
42 in
CFM @ 0.000 in SP
14,346 cfm
CFM @ 0.125 in SP
12,157 cfm
CFM @ 0.250 in SP
7,848 cfm
Country of Origin
Mexico
Drive Package With Motor Included
Yes
Drive Type
Belt
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1 hp
Fan RPM
422
Fan Voltage
115/208-230V AC
Frame Material
Galvanized Steel
Full Load Amps
13/7-7
Height
46-1/4 in
Housing Material
Galvanized Steel
Hz
60
Includes
(4) Wall-Mounting Angles
Max Ambient Temperature
104 Degrees F
Max BHP
1.15 hp
Max Depth
34-5/8 in
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor Insulation
Class B
Motor RPM
1,725 RPM
Motor Type
Capacitor-Start
Mounting Position
Horizontal
Number of Blades
5
Phase
1
Propeller Material
Fabricated Steel
Sones @ 0.125 in SP @ 5 feet
17.5
Standards
AMCA Air, CSA Certified Motor, Sound, UL/cUL 705
Width
46-1/4 in
