OEM#: 1VCF9New OEM Original Outright

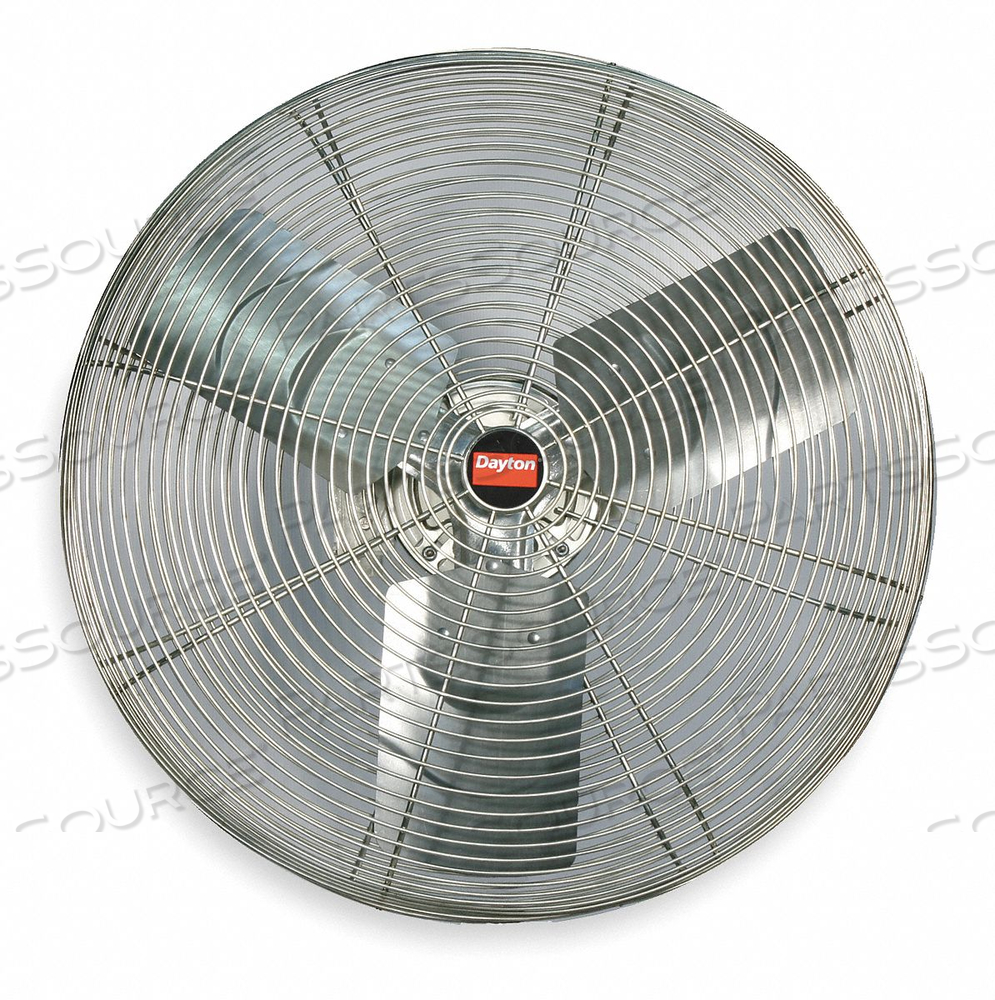

PNTD WSHDWN AIR CRCLTR 20 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$419.76 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1VCF9
PNTD WSHDWN AIR CRCLTR 20 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO
PNTD WSHDWN AIR CRCLTR 20 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1VCF9
PNTD WSHDWN AIR CRCLTR 20 BLDE DIA 1SPD by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$419.76 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1VCF9 Key Specs
Item
PNTD WSHDWN AIR CRCLTR 20 BLDE DIA 1SPD
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1VCF9
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
4,750 cfm
Air Velocity @ 10 Ft.
900 fpm
Air Velocity @ 20 Ft.
590 fpm
Air Velocity @ 40 Ft.
240 fpm
Air Velocity @ 60 Ft.
155 fpm
Amps
2.9/1.5
Assembly
Assembled
Bearing Type
Ball
Blade Diameter
20 in
Blade Material
Aluminum
Color
Gray
Country of Origin
China
Depth
24 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
No Cord
Fan Housing Material
Steel
Fan Mounting Location
Wall
Guard Material
Steel
Height
29 3/8 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
Conduit Box, Mounting Bolts, Mounting Device, Secondary Safety Support Cable
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/4 hp
Motor Insulation
Class F
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
Hardwired
Number of Blades
3
Number of Speeds
1
Oscillation
Non-Oscillating
Phase
1
RPM
1100
Shaft Dia.
1/2 in
Sound Level
76 dBA
Standards
cULus Listed, Fans pass the UL 507 Hose down Test, OSHA compliant wire guards
Thermal Protection
Automatic Reset
Voltage
115/230V AC
Watts
280
Wheeled Base
Stationary
Width
23 in
Wire Guard Finish
Zinc Plated
