OEM#: 1TDP7New OEM Original Outright

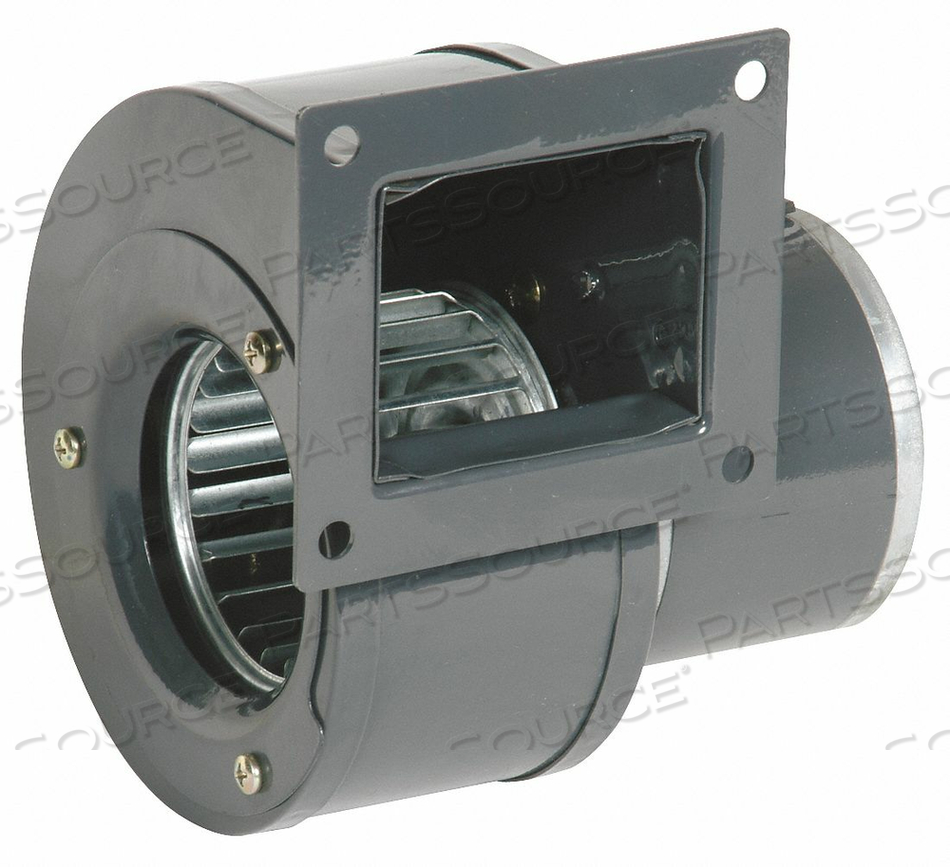

OEM BLOWER, WHEEL TYPE FORWARD-CURVED, DRIVE TYPE DIRECT DRIVE, INCLUDES DRIVE PACKAGE NOT APPLICABLE, ASSEMBLY ASSEMBLED, WHEEL DIAMETER 3 by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$121.42 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1TDP7
OEM BLOWER, WHEEL TYPE FORWARD-CURVED, DRIVE TYPE DIRECT DRIVE, INCLUDES DRIVE PACKAGE NOT APPLICABLE, ASSEMBLY ASSEMBLED, WHEEL DIAMETER 3 by DAYTON ELECTRIC MANUFACTURING CO
OEM BLOWER, WHEEL TYPE FORWARD-CURVED, DRIVE TYPE DIRECT DRIVE, INCLUDES DRIVE PACKAGE NOT APPLICABLE, ASSEMBLY ASSEMBLED, WHEEL DIAMETER 3 by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1TDP7
OEM BLOWER, WHEEL TYPE FORWARD-CURVED, DRIVE TYPE DIRECT DRIVE, INCLUDES DRIVE PACKAGE NOT APPLICABLE, ASSEMBLY ASSEMBLED, WHEEL DIAMETER 3 by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$121.42 each

OEM BLOWER, WHEEL TYPE FORWARD-CURVED, DRIVE TYPE DIRECT DRIVE, INCLUDES DRIVE PACKAGE NOT APPLICABLE, ASSEMBLY ASSEMBLED, WHEEL DIAMETER 3 7/8 IN, AIRFLOW @ 0.000 IN SP 146 CFM, AIRFLOW @ 0.100 IN SP 140 CFM, AIRFLOW @ 0.125 IN SP NOT APPLICABLE, AIRFLOW @ 0.250 IN SP 130 CFM, AIRFLOW @ 0.375 IN SP NOT APPLICABLE, AIRFLOW @ 0.400 IN SP 120 CFM, AIRFLOW @ 0.500 IN SP 110 CFM, AIRFLOW @ 0.750 IN SP NOT APPLICABLE, AIRFLOW @ 1.000 IN SP NOT APPLICA

Ready to ship
Asset Information
warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1TDP7 Key Specs
Item
OEM BLOWER, WHEEL TYPE FORWARD-CURVED, DRIVE TYPE DIRECT DRIVE, INCLUDES DRIVE PACKAGE NOT APPLICABLE, ASSEMBLY ASSEMBLED, WHEEL DIAMETER 3
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1TDP7
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
cULus Recognized (E47479) for the Motor Only Not the Blower, CE and RoHS Compliance
Bearing Type
Ball
Blower Conduit Box
Yes
Blower Item
OEM Specialty Blower
Blower Motor Type
Permanent Split Capacitor
Blower Outlet Shape
Rectangular
Blower Thermal Protection
Auto
Blower Voltage
115V AC
Blower Wheel Diameter
3-15/16 in
Blower Wheel Width
1-7/8 in
CFM @ 0.000 in SP
146
CFM @ 0.100 in SP
140
CFM @ 0.200 in SP
126
CFM @ 0.300 in SP
124
CFM @ 0.400 in SP
120
CFM @ 0.500 in SP
110
Dimension A
5-3/8 in
Dimension B
6-3/8 in
Dimension C
6-5/16 in
Dimension D
3-5/16 in
Dimension E
5-3/4 in
Dimension F
3-5/16 in
Dimension J
4-5/8 in
Dimension K
3-1/2 in
Dimension L
4 in
Dimension M
2-7/8 in
Drive Type
Direct
Full Load Amps
0.75
Housing Color
Gray
Housing Finish
Enamel
Housing Material
Rolled Steel
Hz
50/60
Includes
Discharge Mounting Flange
Inlet Diameter
3-1/8 in
Lead Length
13 in
Max Ambient Temperature
104 Degrees F
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Open
Motor Insulation
Class B
Mounting Position
All Position
Outlet Height
2-3/16 in
Outlet Width
3-1/4 in
Overall Depth
5-3/8 in
Overall Height
5-3/4 in
Overall Width
6-5/16 in
Phase
1
RPM
3100
Replaces
4C446
Wheel Type
Forward Curve
With Flange
Yes
