OEM#: 1D170New OEM Original Outright

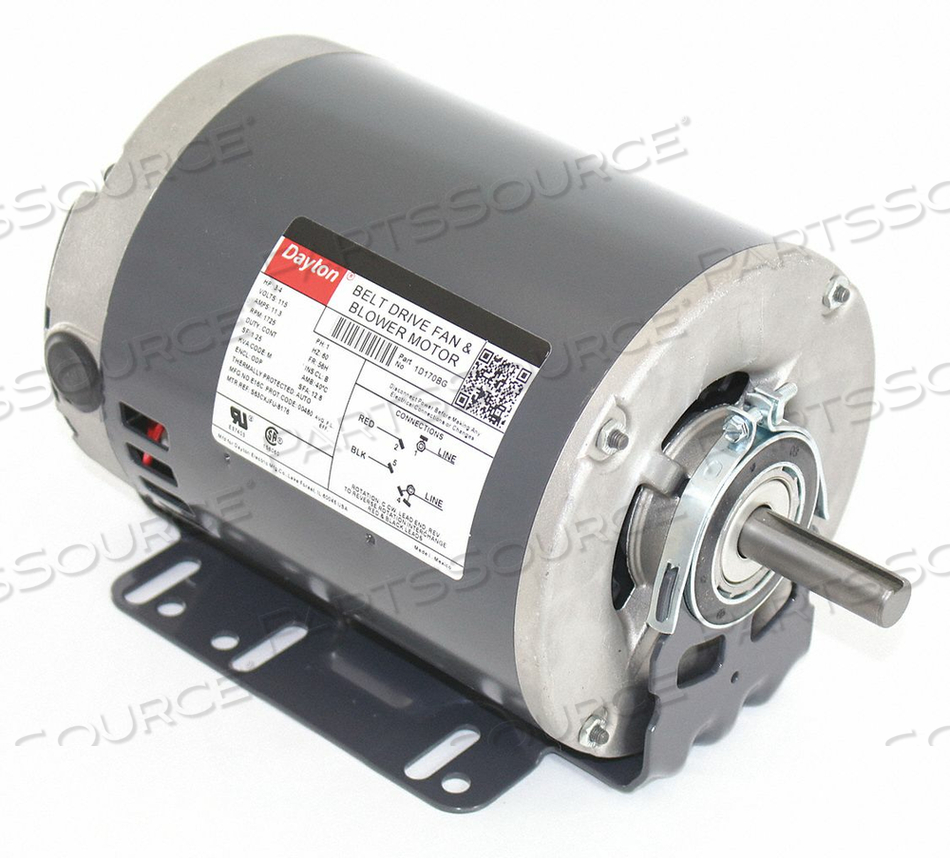

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 11.3 A FULL LOAD AM by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$466.96 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1D170
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 11.3 A FULL LOAD AM by DAYTON ELECTRIC MANUFACTURING CO
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 11.3 A FULL LOAD AM by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1D170
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 11.3 A FULL LOAD AM by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$466.96 each

BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 11.3 A FULL LOAD AMPS, 56H FRAME, 60 HZ HZ, MOTOR SERVICE FACTOR 1.25, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, MAX. AMBIENT TEMP. 104 DEGREES F, DUTY CYCLE CONTINUOUS, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR MOUNTING POSITION ALL ANGLE, MOTOR FRAME MATERIAL

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1D170 Key Specs
Item
BELT DRIVE MOTOR, SINGLE PHASE, MOTOR DESIGN SPLIT-PHASE, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115V AC, 11.3 A FULL LOAD AM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1D170
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-3/8 in
Duty
Continuous
Frame
56H
Full Load Amps
11.3
HP
3/4 hp
Hz
60
Includes
Shaft Key
Ins. Class
B
Length Less Shaft
9-7/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1725
Nominal Efficiency
60.3 %
Number of Speeds
1
Overall Length
11-5/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
8-15/16 in
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
UL Component Recognition (E37403) and CSA Certification (258501)
Voltage
115
