OEM#: 194145.00New OEM Original Outright

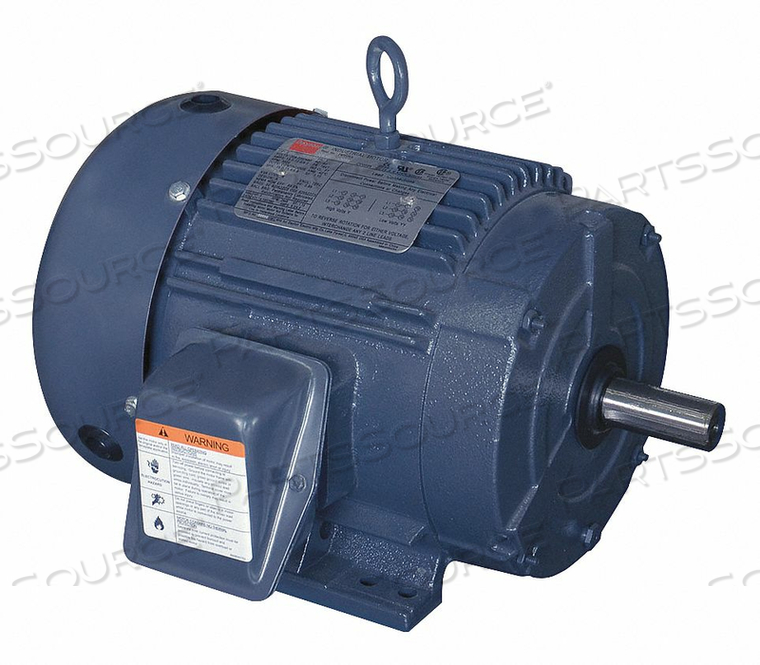

3PH 3 HP 1750 230/460V 89.5 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,229.08 each
OEM#: 194145.003PH 3 HP 1750 230/460V 89.5 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,229.08 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 194145.00 Key Specs
Item
3PH 3 HP 1750 230/460V 89.5
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
194145.00
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Duty
Continuous
Frame
182T
Full Load Amps
7.6/3.8
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
3 hp
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
12-1/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1760
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
14-11/16 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
1-1/8 in
Shaft Length
2-3/4 in
Standards
CE, CSA, UL
Voltage
230/460
