OEM#: 16D524New OEM Original Outright

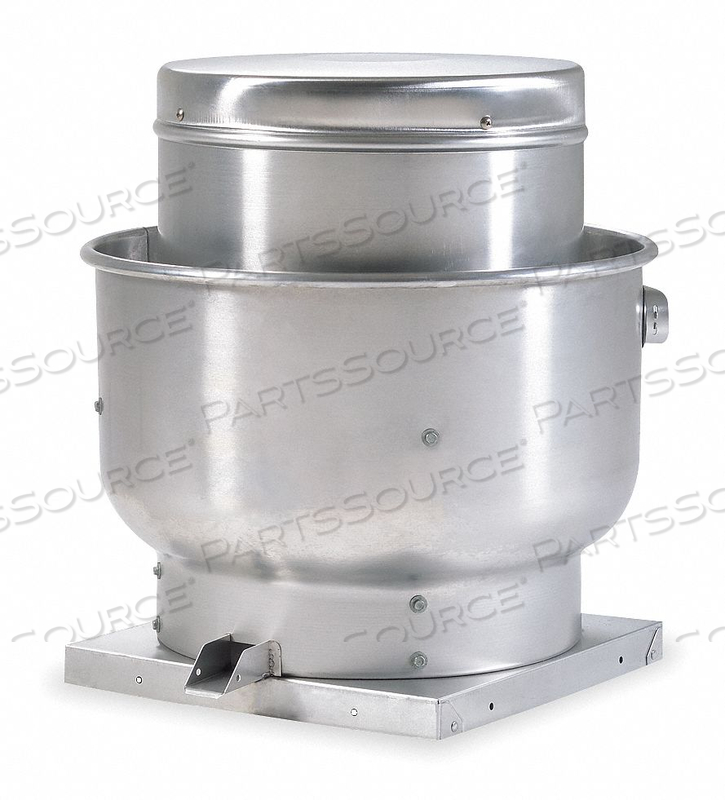

SQUARE ALU 22 L 22 W ROOF EXHST FAN by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$1,470.76 each
OEM#: 16D524SQUARE ALU 22 L 22 W ROOF EXHST FAN by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$1,470.76 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 16D524 Key Specs
Item
SQUARE ALU 22 L 22 W ROOF EXHST FAN
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
16D524
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Base Height
1 3/4 in
Base Size - Roof Ventilators
22 in x 22 in
CFM Range
2001 to 3125 @ 0.0 in SP
Country of Origin
USA
Dimension A
22 in
Dimension B
28 7/8 in
Dimension C
26 3/8 in
Dimension D
19 3/8 in
Drive Package With Motor Included
No
Drive Type - Roof Ventilators
Belt Drive
Duty Rating - Roof Ventilators
Standard
Housing Material
Spun Aluminum
Includes
NEMA 1 Junction Box
Item - Roof Ventilators
Upblast Ventilator
Max. Inlet Temp.
300 Degrees
Motor HP Range
1/4 to 1
Mounting Location - Roof Ventilators
Roof
Number of Speeds
1
Overall Dia.
24 7/8 in
Overall Height
26 3/8 in
RPM Range
1105 to 1725
Shaft Dia. Sheave End
3/4 in
Shaft Dia. Wheel End
3/4 in
Standards
UL/cUL 762, AMCA Sound, Air
Wheel Dia.
14 3/4 in
Wheel Material
Aluminum
Wheel Type
Backward Inclined Centrifugal
