OEM#: 13V401New OEM Original Outright

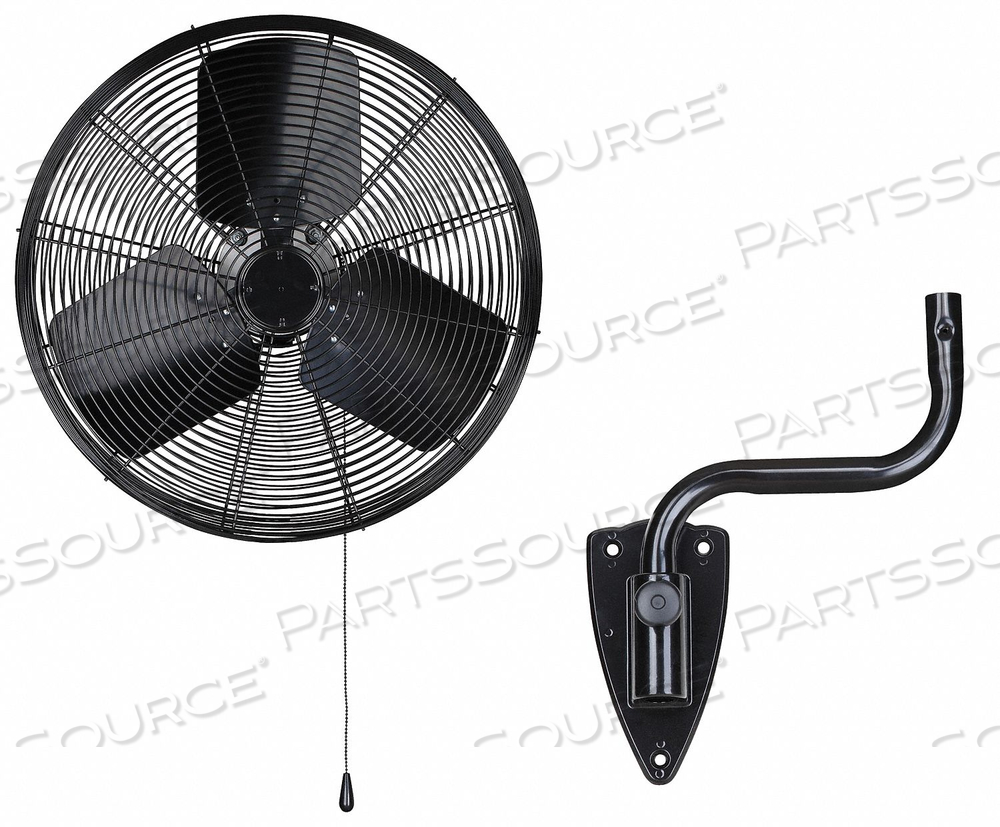

LIGHT DTY INDSTRL FAN 18 BLDE DIA 2SPD by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$312.90 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO13v401
LIGHT DTY INDSTRL FAN 18 BLDE DIA 2SPD by DAYTON ELECTRIC MANUFACTURING CO
LIGHT DTY INDSTRL FAN 18 BLDE DIA 2SPD by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 13V401
LIGHT DTY INDSTRL FAN 18 BLDE DIA 2SPD by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$312.90 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 13V401 Key Specs
Item
LIGHT DTY INDSTRL FAN 18 BLDE DIA 2SPD
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
13V401
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
4,000/5,700 cfm
Air Velocity @ 10 Ft.
475/396 fpm
Air Velocity @ 20 Ft.
272/230 fpm
Air Velocity @ 40 Ft.
142/132 fpm
Amps
2.0/1.5
Assembly
Assembly Required
Bearing Type
Ball
Blade Diameter
18 in
Blade Material
Aluminum
Color
Black
Country of Origin
China
Depth
24 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
9 ft
Fan Housing Material
Steel
Fan Mounting Location
Wall
Guard Material
Steel
Height
37 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
Mounting Hardware, Secondary Safety Support Cable, Wall Bracket
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1/5 hp
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P
Number of Blades
3
Number of Conductors
3
Number of Speeds
2
Oscillation
Oscillating
Phase
1
RPM
1100/925
Shaft Dia.
12 mm
Sound Level
70/66 dBA
Standards
cULus Listed
Thermal Protection
Automatic Reset
Voltage
120V AC
Watts
220/175
Wheeled Base
Stationary
Width
20 1/2 in
Wire Guard Finish
Polyester Powder Coated Black
