OEM#: 11G254New OEM Original Outright

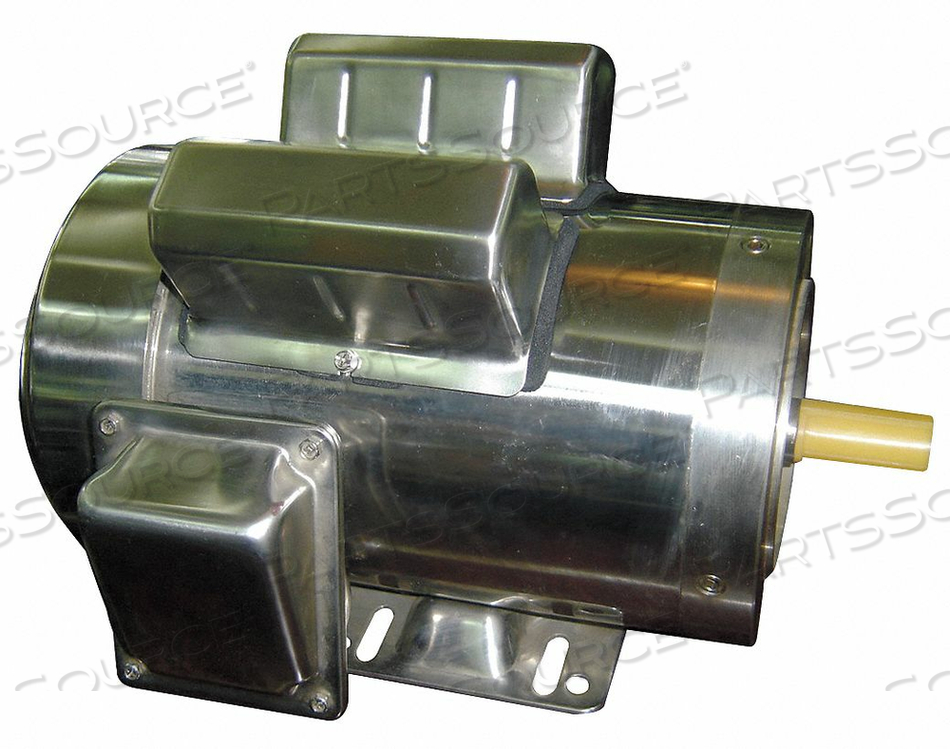

MOTOR 1 HP 1745 56HC 115/208-230V by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$1,086.63 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO11G254
MOTOR 1 HP 1745 56HC 115/208-230V by DAYTON ELECTRIC MANUFACTURING CO
MOTOR 1 HP 1745 56HC 115/208-230V by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 11G254
MOTOR 1 HP 1745 56HC 115/208-230V by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$1,086.63 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 11G254 Key Specs
Item
MOTOR 1 HP 1745 56HC 115/208-230V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
11G254
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Beverage Industries, Chemical Processing, Food Processing
Body Diameter
6-1/2 in
Country of Origin
China
Drain Plugs
12,3,6,9 O'clock on SE and OSE Endshields
Duty
Continuous
Endshields
Stainless Steel
Frame
56HC
Full Load Amps
11.2 /5.8-5.6
HP
1
Hz
60
Includes
(1) T-Drain Valve and (1) Plug and T-Drain
Ins. Class
F
Length Less Shaft
11-3/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
Washdown
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Stainless Steel
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
NEMA Design
B
Nameplate RPM
1745
Nominal Efficiency
66 %
Overall Length
13-5/8 in
Phase
1
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Shaft Material
Stainless Steel
Standards
CSA Certified, UL Recognized (E37403)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
