OEM#: 10D956New OEM Original Outright

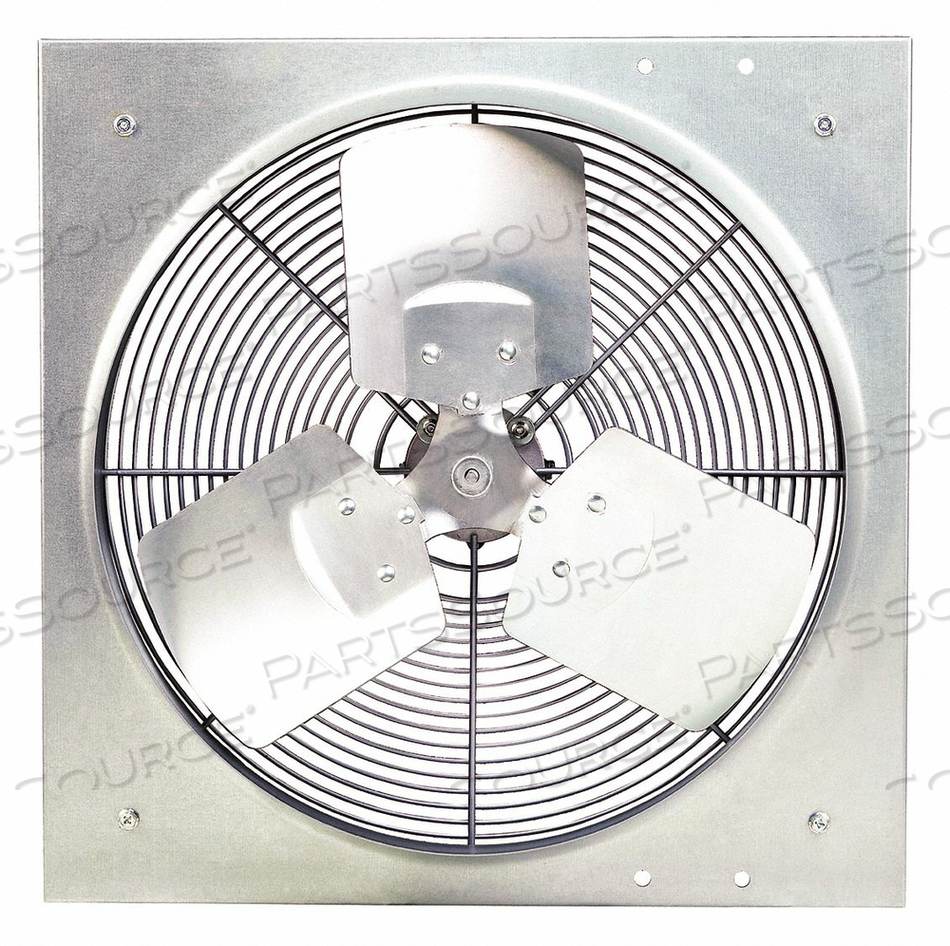

EXHAUST FAN 16 IN 1201 CFM by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$328.34 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO10d956
EXHAUST FAN 16 IN 1201 CFM by DAYTON ELECTRIC MANUFACTURING CO
EXHAUST FAN 16 IN 1201 CFM by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 10D956
EXHAUST FAN 16 IN 1201 CFM by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$328.34 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 10D956 Key Specs
Item
EXHAUST FAN 16 IN 1201 CFM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
10D956
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
UL and cUL Listed, AMCA
Aluminum Wall Shutter Number
4C557
Bearing Type
Sleeve
Blade Diameter
16 in
CFM @ 0.000 in SP
1,334 cfm
CFM @ 0.125 in SP
1,045 cfm
CFM @ 0.250 in SP
704 cfm
CFM @ 0.375 in SP
490 cfm
Country of Origin
China
Dimension A (Inches)
20 in
Dimension B (Inches)
5 in
Dimension C (Inches)
2-3/4 in
Dimension D (Inches)
16-3/8 in
Exhaust/Supply Fan Item
Exhaust Fan
Exhaust/Supply Fan Motor HP
1/20 hp
Fan Voltage
115V AC
Fiberglass Wall Shutter Number
5C212
Flange Width (Inches)
1 in
For Use With
General Ventilation Applications
Frame Finish
Galvanized
Frame Material
Galvanized
Full Load Amps
1
Galvanized Wall Shutter Number
1C743
Guard Material
Steel
Height (Inches)
20 in
Hz
60
Inside Diameter (Inches)
16-3/8 in
Max Ambient Temperature (F)
104 Degrees F
Max Depth (Inches)
7-3/4 in
Motor Enclosure
Totally Enclosed Air Over
Motor Insulation
Class B
Motor RPM
1,650 RPM
Mounting Position
Vertical
Number of Blades
3
Outside Diameter (Inches)
20 in
Phase
1
Propeller Material
Aluminum
Sones @ 0.000 in SP @ 5 ft
10.2
Sones @ 0.125 in SP @ 5 ft
13.6
Speed Control
48C172
Type
Medium Duty Direct Drive
Venturi Clearance Diameter (Inches)
16-7/16 in
Venturi Depth (Inches)
2-3/4 in
Watts
80 W
Width (Inches)
20 in
Wire Guard Finish
Zinc Plated
