OEM#: 103842.00New OEM Original Outright

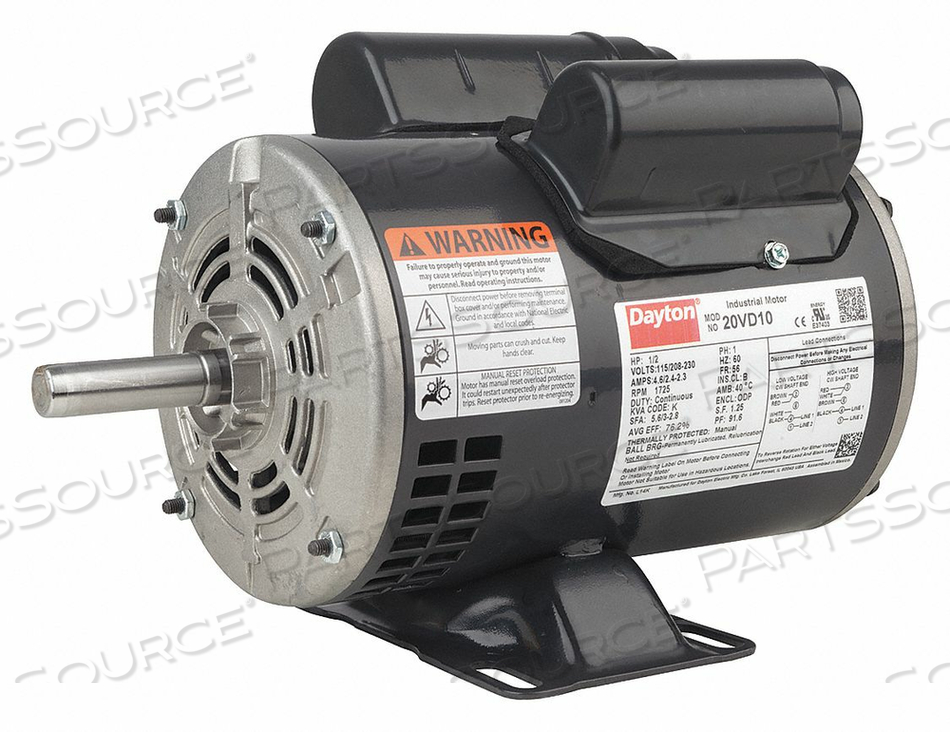

GP MTR CS/CR ODP 1/2 HP 3450 56 EFF 72.4 by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$538.15 each
OEM#: 103842.00GP MTR CS/CR ODP 1/2 HP 3450 56 EFF 72.4 by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$538.15 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 103842.00 Key Specs
Item
GP MTR CS/CR ODP 1/2 HP 3450 56 EFF 72.4
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
103842.00
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
4.4/2.4-2.2
Green Certification or Other Recognition
Energy Aware Certified
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
1/2 hp
Hz
60
Includes
Start Capacitor 400 to 480MFD, 115V AC, Run Capacitor
Ins. Class
B
Inverter Rated
No
Length Less Shaft
9 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Nameplate RPM
3450
Nominal Efficiency
72.4 %
Number of Speeds
1
Overall Length
11 in
Phase
1
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
5/8 in
Shaft Length
2 in
Standards
UL (E37403)
Voltage
115/208-230
