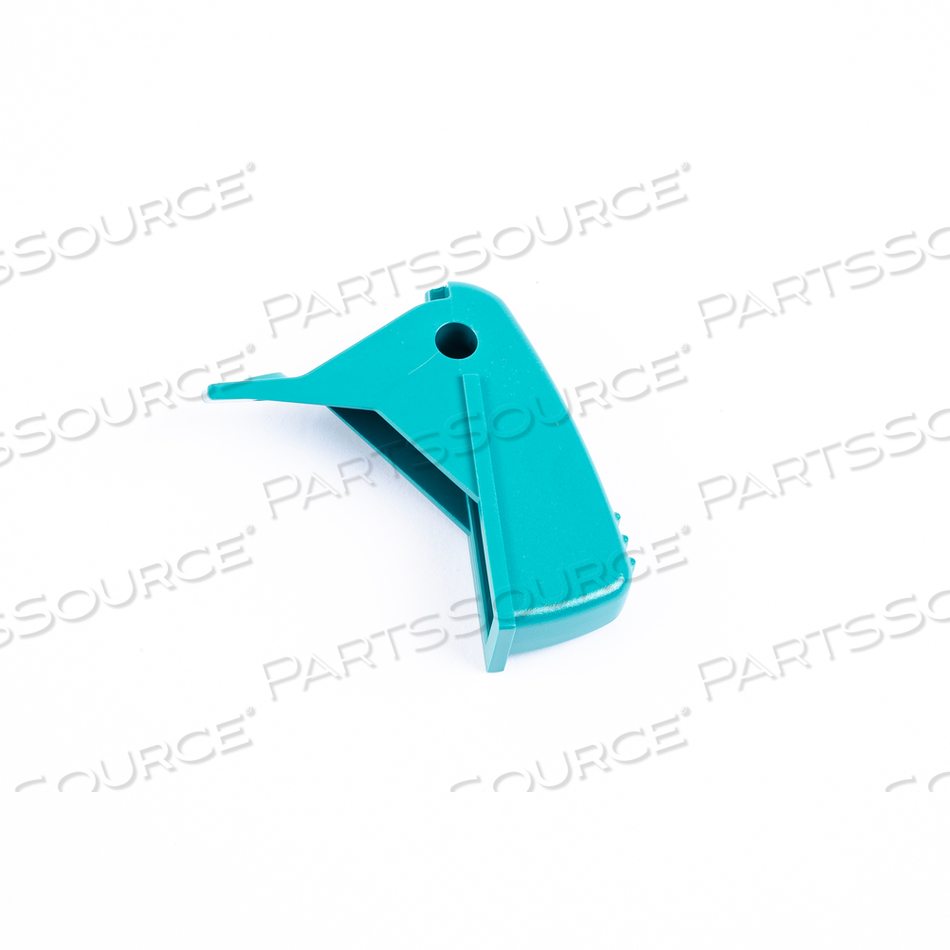

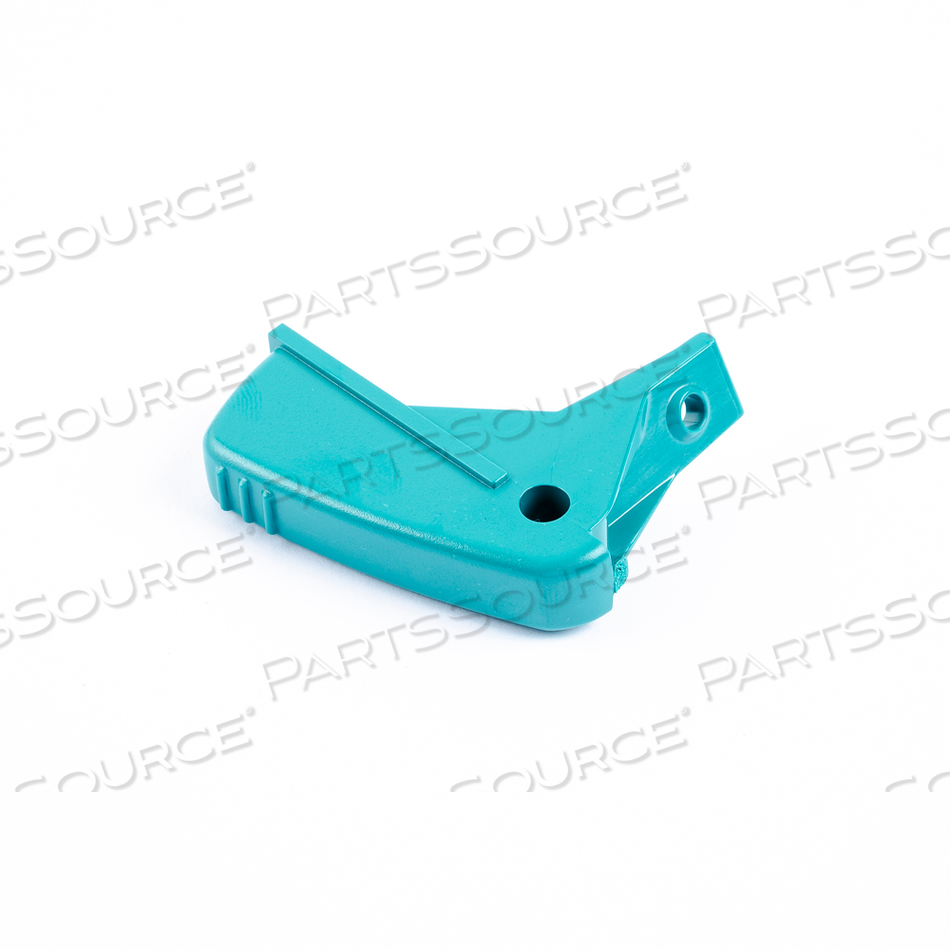

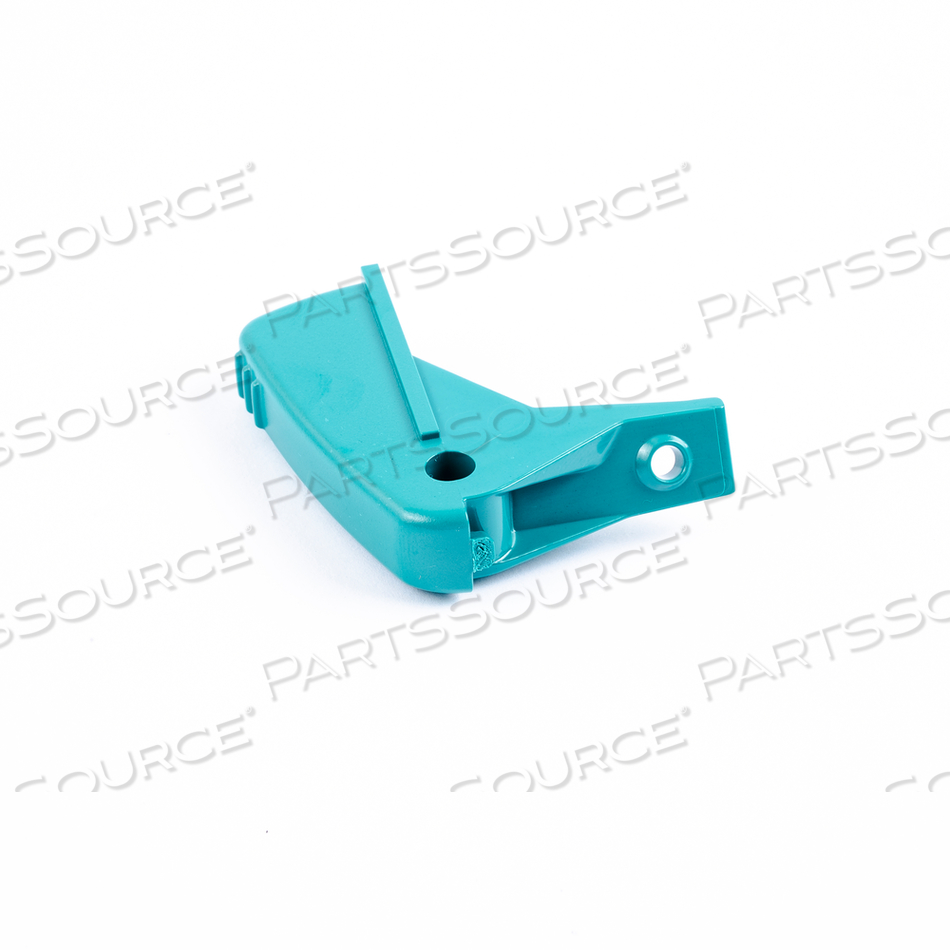

LEVER LOCK RELEASE by Datex-Ohmeda
OEM#: 1407-3808-000LEVER LOCK RELEASE by Datex-Ohmeda
Drop Shipped From GE - Not For Export Out Of US
The Lever Lock Release is a component of the bag arm assembly, which is a holding device. It is used to hold the reservoir bag in an anesthesia machine. It has a port end and a base end. A lock release lever comes as a part of bag arm upper assembly along with a cover, a bag port housing, a retaining ring, a Nyloc nut of M3 size. A dowel pin, a screw and washer of M3 size come as parts of bag arm lower assembly. The base end is fixed to the machine by means of a lock ring and can be rotated. The bag port end holds the reservoir / breathing circuit bag. A housing encloses the bag port. A lever is installed onto the housing and closed by a cover. The lever is pushed by means of retaining ring and nut, to raise the bag support arm and arm is rotated at the base end to the top position. To lower it, the arm is rotated down to the lower position. Thus the position of reservoir bag can be changed according to the patient’s need.
Additional Features:
- Durable and reliable
- Excellent toughness
- Sharp edges or corners are broken by 0.3 - 0.5 mm
- Good chemical and impact resistance
