OEM#: 65E60-12New OEM Original Outright

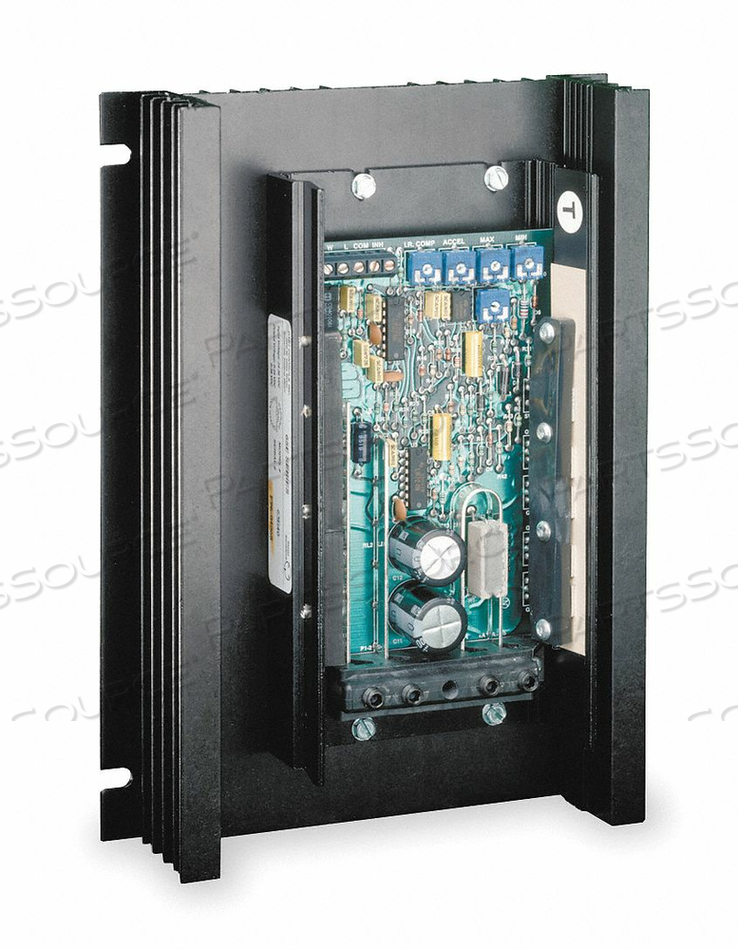

DC SPEED CONTROL 0-12VDC 60A NEMA 4X by Dart Controls

Your price:
$573.67 eachReady to ship
HomeDart Controls65E6012
DC SPEED CONTROL 0-12VDC 60A NEMA 4X by Dart Controls
DC SPEED CONTROL 0-12VDC 60A NEMA 4X by Dart Controls

OEM#: 65E60-12
DC SPEED CONTROL 0-12VDC 60A NEMA 4X by Dart Controls

New OEM Original Outright
Your price:
$573.67 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 65E60-12 Key Specs
Item
DC SPEED CONTROL 0-12VDC 60A NEMA 4X
OEM
Dart Controls
OEM #
65E60-12
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
USA
Current/Torque Limit
Adjustable
DC Input Voltage
12V DC
DC Speed Control
PWM
Depth
2.27 in
Enclosure
Chassis
External Switches
None
For Use With
Low Voltage DC Motors in Portable Battery-powered Equipment for Conveying, Pumping and Paper Sorting, Spraying
HP @ Higher Volts
1/2 to 3
HP @ Lower Volts
1/8 to 1
Height
9 in
IR Compensation
Adjustable
Includes
Speed Potentiometer Knob and Dial Plate
Linear Acceleration
Adjustable 0 to 10 sec
Linear Deceleration
Fixed 0.5 sec
Max Amps
60 A
Mount Type
Chassis
Operating Temperature
-10 Degrees to 45 Degrees C
Rotation
Single Direction
Speed Range
30:1
Speed Regulation
+/-1% of Base Speed
Voltage Output
0 to 12V DC
Width
6.7 in
