OEM#: 530BCNew OEM Original Outright

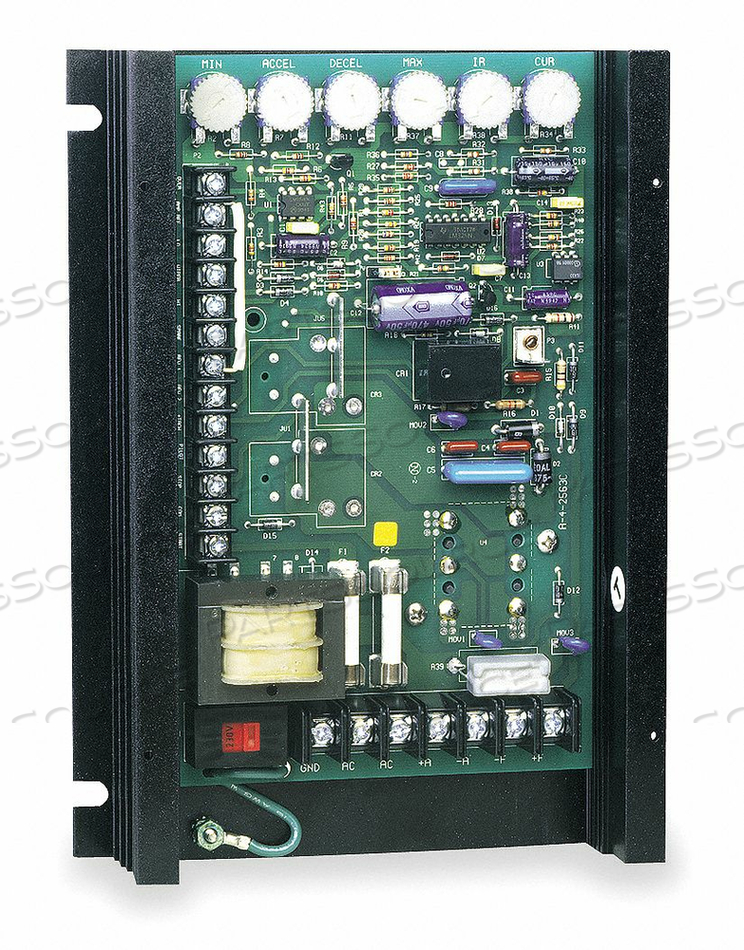

DC SPEED CONTROL 90/180VDC 10A NEMA 4/12 by Dart Controls
Your price:
$905.47 each
OEM#: 530BCDC SPEED CONTROL 90/180VDC 10A NEMA 4/12 by Dart Controls
New OEM Original Outright
Your price:
$905.47 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 530BC Key Specs
Item
DC SPEED CONTROL 90/180VDC 10A NEMA 4/12
OEM
Dart Controls
OEM #
530BC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
AC Input Voltage
120/240V AC
Accepts Tach Feedback
Yes
Country of Origin
USA
Current/Torque Limit
Adjustable
DC Speed Control
SCR
Depth
2 in
Dynamic Braking
No
Enclosure
Chassis
External Switches
None
Follower Circuit
No
For Use With
Conveyor, DC Motor and Spooling Applications, Fan/Blower, Food Processing, Laboratory, Machine Tool, Material Handling, Pump
HP @ Higher Volts
1/4 to 2
HP @ Lower Volts
1/8 to 1
Height
9 in
IR Compensation
Adjustable
Includes
Speed Potentiometer Knob and Dial Plate
Linear Acceleration
Adjustable 0.3 to 12 sec
Linear Deceleration
Adjustable 0.6 to 12 sec
Max Amps
10 A
Mount Type
Chassis
Operating Temperature
-10 Degrees to 45 Degrees C
Rotation
Single Direction
Shunt Wound Volts
100/200V DC
Speed Range
50:1
Speed Regulation
+/-1% with Armature Voltage Feedback, +/-0.5% with Tach Feedback
Standards
cULus Recognized
Voltage Output
0 to 90/180V DC
Width
6.7 in
