OEM#: 253G-200E-7New OEM Original Outright

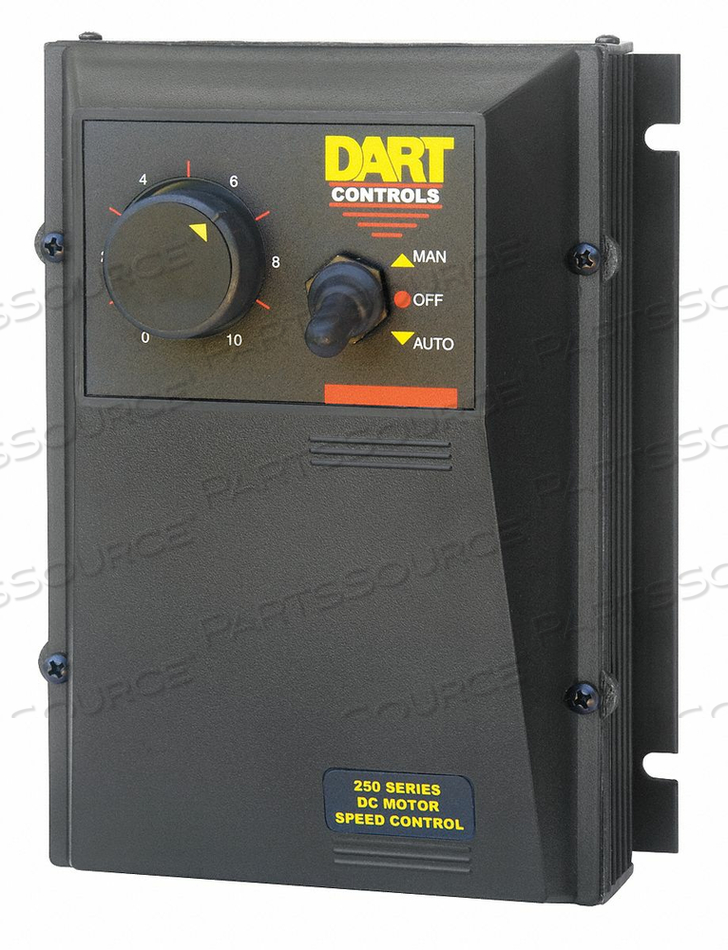

DC SPEED CONTROL 90/180VDC 10A NEMA 4X by Dart Controls

Your price:
$597.46 eachReady to ship
HomeDart Controls253G200E7
DC SPEED CONTROL 90/180VDC 10A NEMA 4X by Dart Controls
DC SPEED CONTROL 90/180VDC 10A NEMA 4X by Dart Controls

OEM#: 253G-200E-7
DC SPEED CONTROL 90/180VDC 10A NEMA 4X by Dart Controls

New OEM Original Outright
Your price:
$597.46 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 253G-200E-7 Key Specs
Item
DC SPEED CONTROL 90/180VDC 10A NEMA 4X
OEM
Dart Controls
OEM #
253G-200E-7
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
AC Input Voltage
120/240V AC
Accepts Tach Feedback
Yes
Country of Origin
USA
Current/Torque Limit
Adjustable
DC Speed Control
SCR
Depth
2.75 in
Dynamic Braking
No
Enclosure
NEMA 4X
External Switches
ON/OFF, AUTO/MANUAL
Follower Circuit
Yes
For Use With
DCPM and Shunt Motors
HP @ Higher Volts
1/4 to 2
HP @ Lower Volts
1/8 to 1
Height
2.75 in
IR Compensation
Adjustable
Includes
Isolated 4-20 Current Follower
Linear Acceleration
Adjustable 0.5 to 8 sec.
Max Amps
10
Mount Type
Surface
Operating Temperature
-10 Degrees to 45 Degrees C
Power On Light
No
Rotation
Single Direction
Shunt Wound Volts
100/200VDC
Speed Range
50:1
Speed Regulation
+/-1% with Armature Voltage Feedback, +/-0.5% with Tach Feedback
Standards
cULus Listed
Voltage Output
0 to 90/180VDC
Width
2.75 in
