OEM#: 15DVENew OEM Original Outright

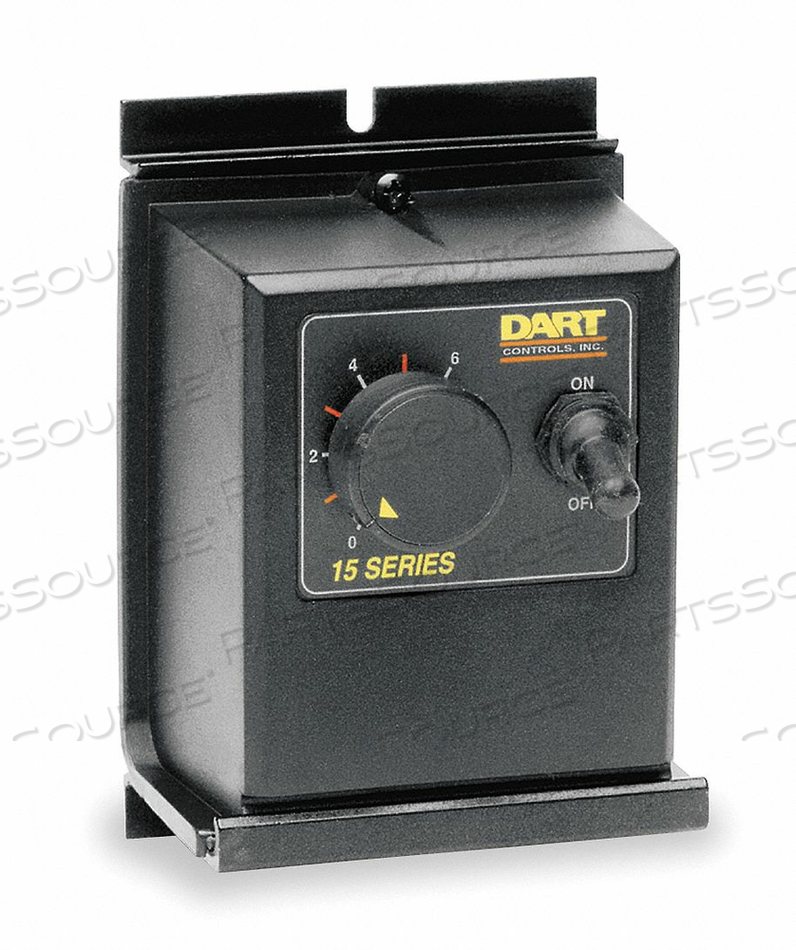

DC SPEED CONTROL 90/180VDC 3A NEMA 4/12 by Dart Controls

Your price:
$302.28 eachReady to ship
HomeDart Controls15DVE
DC SPEED CONTROL 90/180VDC 3A NEMA 4/12 by Dart Controls
DC SPEED CONTROL 90/180VDC 3A NEMA 4/12 by Dart Controls

OEM#: 15DVE
DC SPEED CONTROL 90/180VDC 3A NEMA 4/12 by Dart Controls

New OEM Original Outright
Your price:
$302.28 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 15DVE Key Specs
Item
DC SPEED CONTROL 90/180VDC 3A NEMA 4/12
OEM
Dart Controls
OEM #
15DVE
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
AC Input Voltage
120/240V AC
Accepts Tach Feedback
No
Country of Origin
USA
Current/Torque Limit
None
DC Speed Control
SCR
Depth
3.5 in
Dynamic Braking
No
Enclosure
NEMA 4/12
External Switches
On/Off
Follower Circuit
No
HP @ Higher Volts
1/25 to 2/3
HP @ Lower Volts
1/50 to 1/3
Height
5.5 in
IR Compensation
Adjustable
Includes
Speed Potentiometer Knob and Dial Plate
Linear Acceleration
Fixed 0.5 sec
Max Amps
3 A
Mount Type
Compact Panel
Operating Temperature
-10 Degrees to 45 Degrees C
Rotation
Single Direction
Shunt Wound Volts
100/200V DC
Speed Range
25:1
Speed Regulation
+/-1% of Base Speed
Standards
cULus Recognized
Voltage Output
0 to 90/180V DC
Width
3.81 in
