OEM#: 900-1HPNew OEM Original Outright

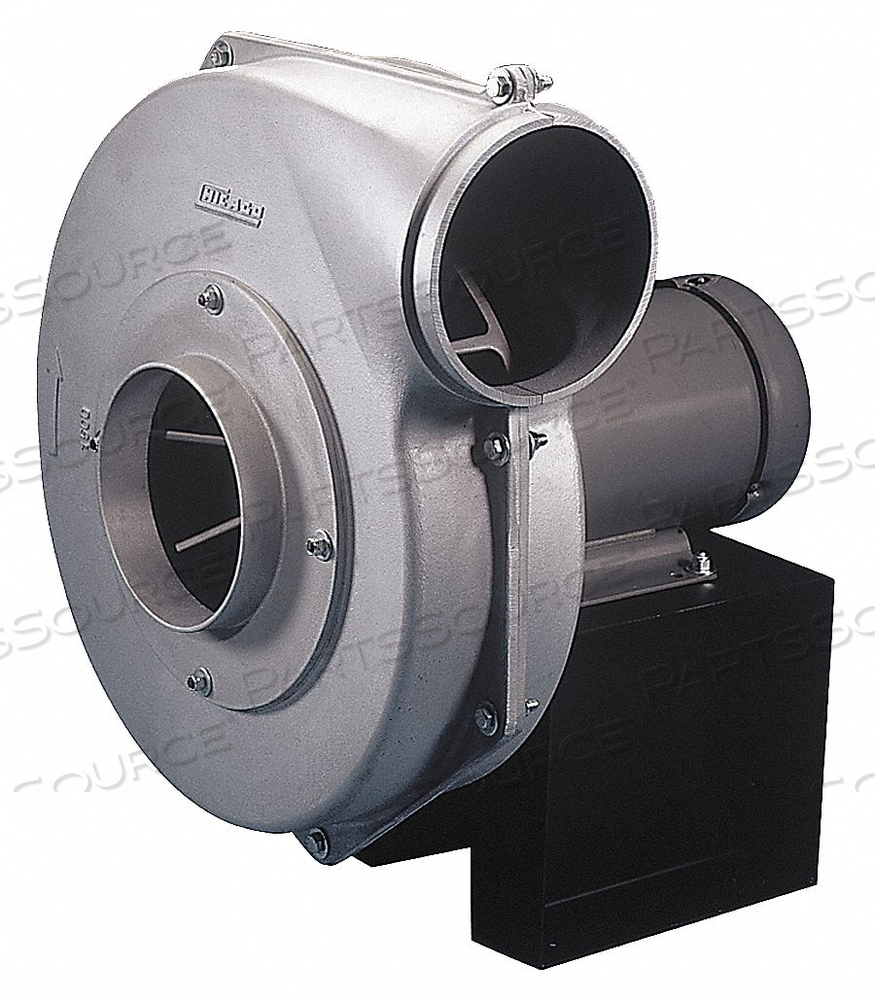

HIGH PRESSURE BLOWER RADIAL BLADE 1 HP by Chicago Blower
Your price:
$2,175.50 each
OEM#: 900-1HPHIGH PRESSURE BLOWER RADIAL BLADE 1 HP by Chicago Blower
New OEM Original Outright
Your price:
$2,175.50 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 900-1HP Key Specs
Item
HIGH PRESSURE BLOWER RADIAL BLADE 1 HP
OEM
Chicago Blower
OEM #
900-1HP
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Type
Regreasable Ball
Blower RPM
3,500
CFM @ 1.000-In. SP
566
CFM @ 2.000-In. SP
531
CFM @ 3.000-In. SP
497
CFM @ 4.000-In. SP
464
CFM @ 5.000-In. SP
430
CFM @ 6.000-In. SP
383
CFM @ 7.000-In. SP
306
Country of Origin
USA
Discharge Height (In.)
4 in
Discharge Width (In.)
4 in
Full Load Amps
1.57 A
Housing Height (In.)
17 3/32 in
Housing Length (In.)
13 1/2 in
Housing Material
Aluminum
Housing Width (In.)
4 3/8 in
Hz
60
Inlet Dia. (In.)
5 in
Max. Ambient Temp. (F)
120 Degrees F
Max. Blower RPM
3,600
Max. Inlet Temp. (Deg. F)
150 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Motor Frame
56C
Motor HP
1 hp
Motor HP Range
1
Motor Insulation
Class F
Motor RPM
3,600 RPM
Motor Type
Three Phase
Phase
3
Rotation
CW
Shaft Dia. (In.)
5/8 in
Type
Radial Blade
Voltage
230/460
Wheel Dia. (In.)
10 5/8 in
Wheel Material
Aluminum
Wheel Width (In.)
2 7/8 in
dBA @ 5 Feet
82
