OEM#: S-20New OEM Original Outright

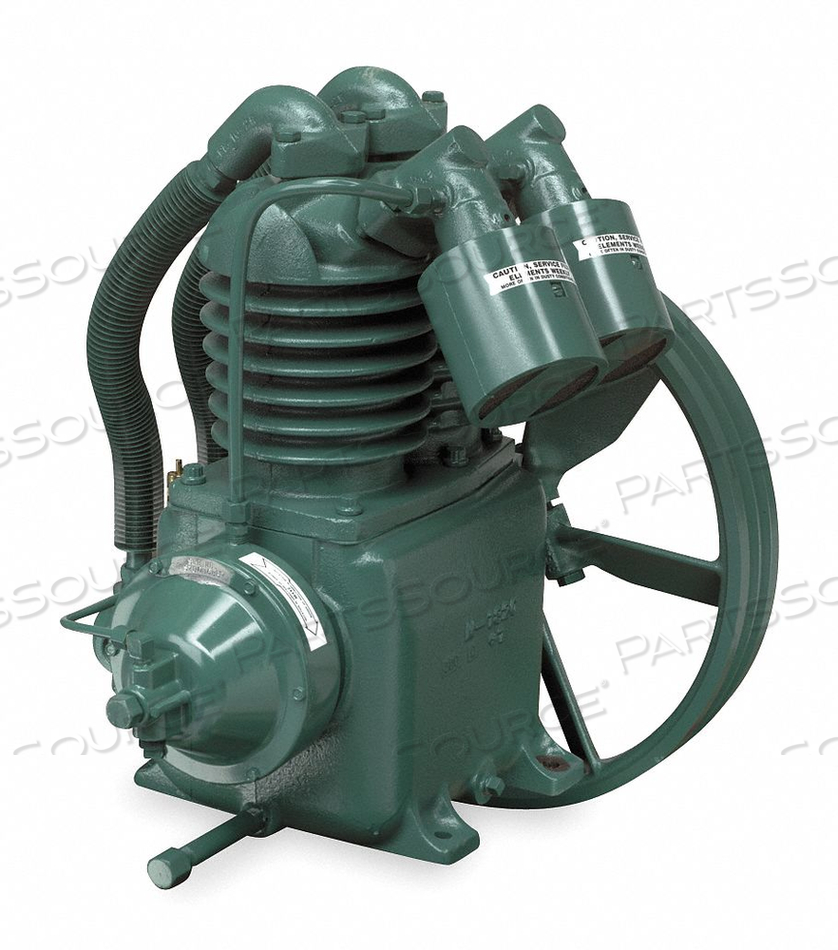

AIR COMPRESSOR PUMP 1 STAGE 5 HP by Champion Spark Plug

Your price:
$5,405.44 eachReady to ship
HomeChampion Spark PlugS20
AIR COMPRESSOR PUMP 1 STAGE 5 HP by Champion Spark Plug
AIR COMPRESSOR PUMP 1 STAGE 5 HP by Champion Spark Plug

OEM#: S-20
AIR COMPRESSOR PUMP 1 STAGE 5 HP by Champion Spark Plug

New OEM Original Outright
Your price:
$5,405.44 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: S-20 Key Specs
Item
AIR COMPRESSOR PUMP 1 STAGE 5 HP
OEM
Champion Spark Plug
OEM #
S-20
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bore Dia.
3 3/4 in
Construction
Cast Iron
Finish
Painted Green
Flywheel Dia.
16 1/2 in
Flywheel Included
Yes
Free Air CFM @ Max. Pressure
19.5
Groove Quantity
2
Groove Section
B
HP
3 hp, 5 hp
Lubrication Type
Splash Lubricated
Max. Pressure
120 psi
Mounting Pattern
8-3/4 in W x 5-3/4 in D
NPT Outlet
3/4 in
Number of Cylinders
2
Number of Stages
1
Oil Capacity
2 qt
Overall Depth
20 in
Overall Height
19 in
Overall Width
18 in
Pump RPM
459, 788
Rotation
CW
Sheave Size @ 1725 RPM
4 1/8 in, 7 1/4 in
Stroke Length
3 in
Valve Material
Swedish Steel
Valve Type
Disc
