OEM#: CM084PNew OEM Original Outright

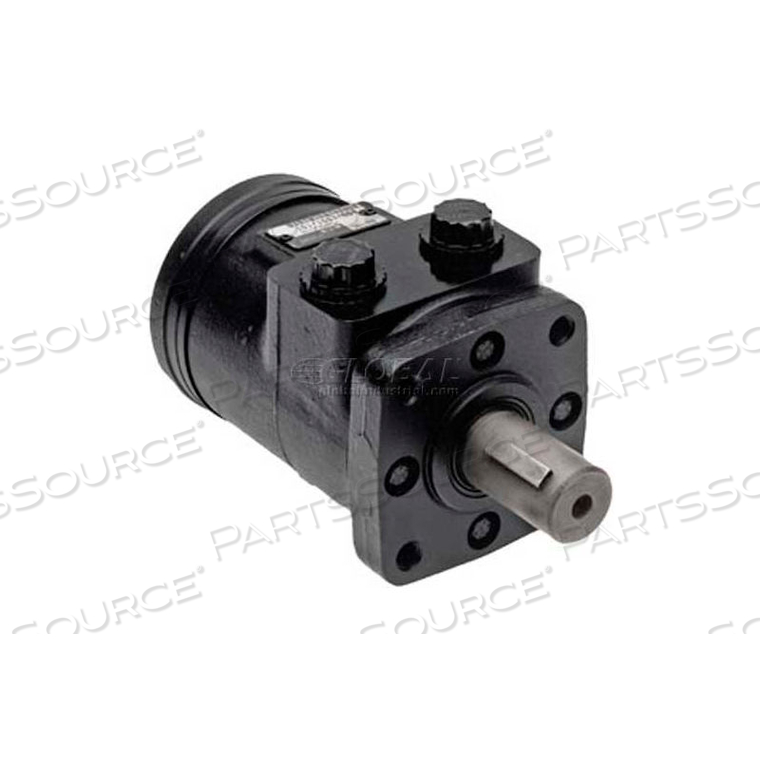

HYDRASTAR HYDRAULIC MOTOR, 4 BOLT, 23.6 CIPR, 152 MAX RPM, 22.6 DISPLACEMENT by Buyers Products
Your price:
$281.88 each
OEM#: CM084PHYDRASTAR HYDRAULIC MOTOR, 4 BOLT, 23.6 CIPR, 152 MAX RPM, 22.6 DISPLACEMENT by Buyers Products
New OEM Original Outright
Your price:
$281.88 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
HydraStar™ Hydraulic Motor, CM084P, 4 Bolt, 23.6 CIPR, 152 Max RPM, 22.6 Displacement
HydraStar™ Hydraulic Motors HydraStar™ Series motors are economical, efficient, small, compact, and powerful, designed for medium duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port provides design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughoutthe speed range of the motor, and equipment can be driven direct eliminating costly mechanical components. Other motors are available. Maximum intermittent pressure at motor inlet port of 172 Bar (2500 PSI) without regard to A Bar (A PSI) and/or back pressure ratings or combination thereof. A simultaneous maximum torque and maximum speed NOT recommended.
HydraStar™ Hydraulic Motors HydraStar™ Series motors are economical, efficient, small, compact, and powerful, designed for medium duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port provides design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughoutthe speed range of the motor, and equipment can be driven direct eliminating costly mechanical components. Other motors are available. Maximum intermittent pressure at motor inlet port of 172 Bar (2500 PSI) without regard to A Bar (A PSI) and/or back pressure ratings or combination thereof. A simultaneous maximum torque and maximum speed NOT recommended.
Technical Specs
P/N: CM084P Key Specs
Item
HYDRASTAR HYDRAULIC MOTOR, 4 BOLT, 23.6 CIPR, 152 MAX RPM, 22.6 DISPLACEMENT
OEM
Buyers Products
OEM #
CM084P
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Char-Lynn®1
101-1008
Char-Lynn®1 Displ.
22.6
Displ.
22.6
Displ. Cm3/R (In3/R)
370 (22.6)
Flow Lpm (Gpm) Continuous
57 (15)
Flow Lpm (Gpm) Intermittent
76 (20)
Max Speed (Rpm) @ Continuous Flow
152
Min. Starting Torque Nm (Lb-In) @ Cont. Pressure
330 (2920)
Min. Starting Torque Nm (Lb-In) @ Int. Pressure
408 (3610)
Orbmark®1
HD132W4FSWP
Orbmark®1 Displ.
23.8
Pressure Bar (Psi) Continuous
86 (1250)
Pressure Bar (Psi) Intermittent
103 (1500)
Prince1
ADM4004RP
Prince1 Displ.
24.4
Torque Lpm (Lb-In) Continuous
407 (3604)
Torque Lpm (Lb-In) Intermittent
484 (4283)
Trw Ross1
MG-24-13-10
Trw Ross1 Displ.
24
Weight
14.87 lbs.
White®1
RS-24-0101
White®1 Displ.
24
