OEM#: F710-10-B5-GNew OEM Original Outright

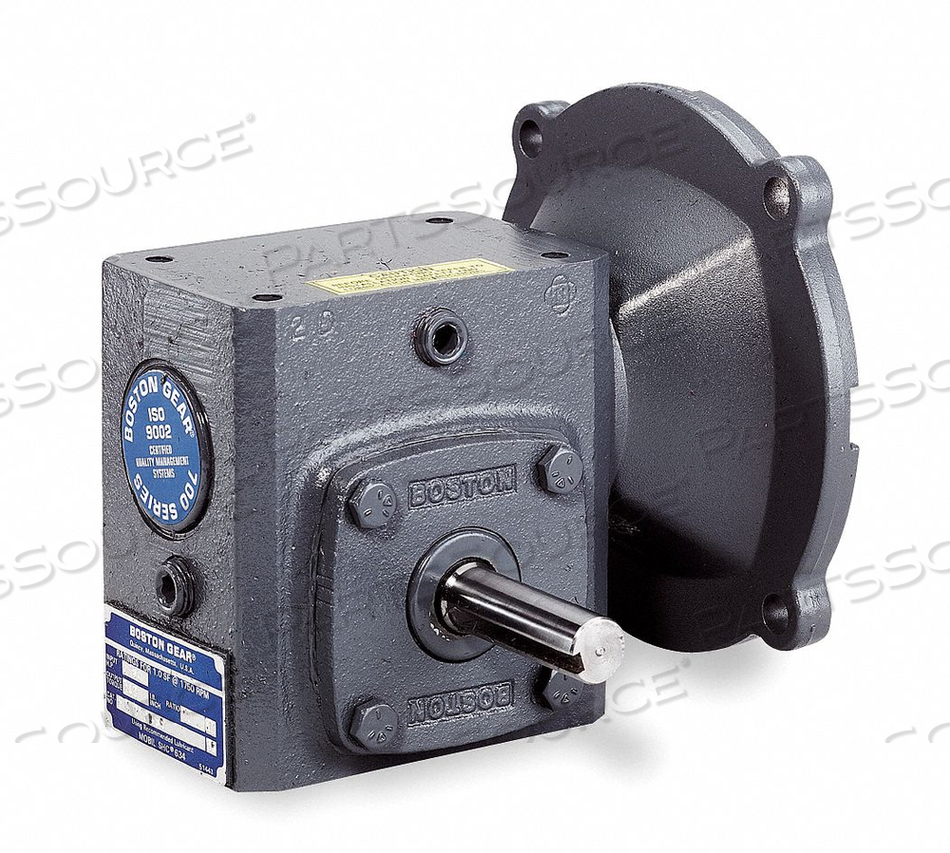

SPEED REDUCER C-FACE 56C 10 1 by Boston Gear
Your price:
$959.15 each
OEM#: F710-10-B5-GSPEED REDUCER C-FACE 56C 10 1 by Boston Gear
New OEM Original Outright
Your price:
$959.15 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: F710-10-B5-G Key Specs
Item
SPEED REDUCER C-FACE 56C 10 1
OEM
Boston Gear
OEM #
F710-10-B5-G
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Base
Optional
Bearings
Tapered Roller
Bore Dia.
5/8 in
Duty
Standard
Finish
Powdered Epoxy Paint
Frame
56C
Gear Material
Hardened and Ground Steel
Gear Type
Worm
Housing Material
Cast Iron
Input RPM
1,750
Lubrication
Klubersynth UH1 6-460
Max. Input HP
0.3 hp
Max. Output Torque
107.0 in-lb
Mounting
Any Position
Nominal Output RPM
175
Nominal Ratio
10:1
Number of Stages
1
Output Shaft Dia.
1/2 in
Output Shaft Height
1 5/16 in
Output Torque @ 1/2 HP
107 in-lb
Output Torque @ 1/3 HP
80 in-lb
Output Torque @ 1/4 HP
53 in-lb
Overhung Load
150 lb
Pinion Material
Hardened Steel
Rotation
Forward/Reversible
Seal Type
Double Lip
Shaft Orientation
Right Angle
Single/Double Output/Universal
Single Output
Solid/Hollow Output Shaft
Solid
Speed Reducer Type
C-Face
Standards
AGMA
Worm Center Distance
1.0 in
Worm Gear Material
Bronze
