OEM#: F718-15-B5-GNew OEM Original Outright

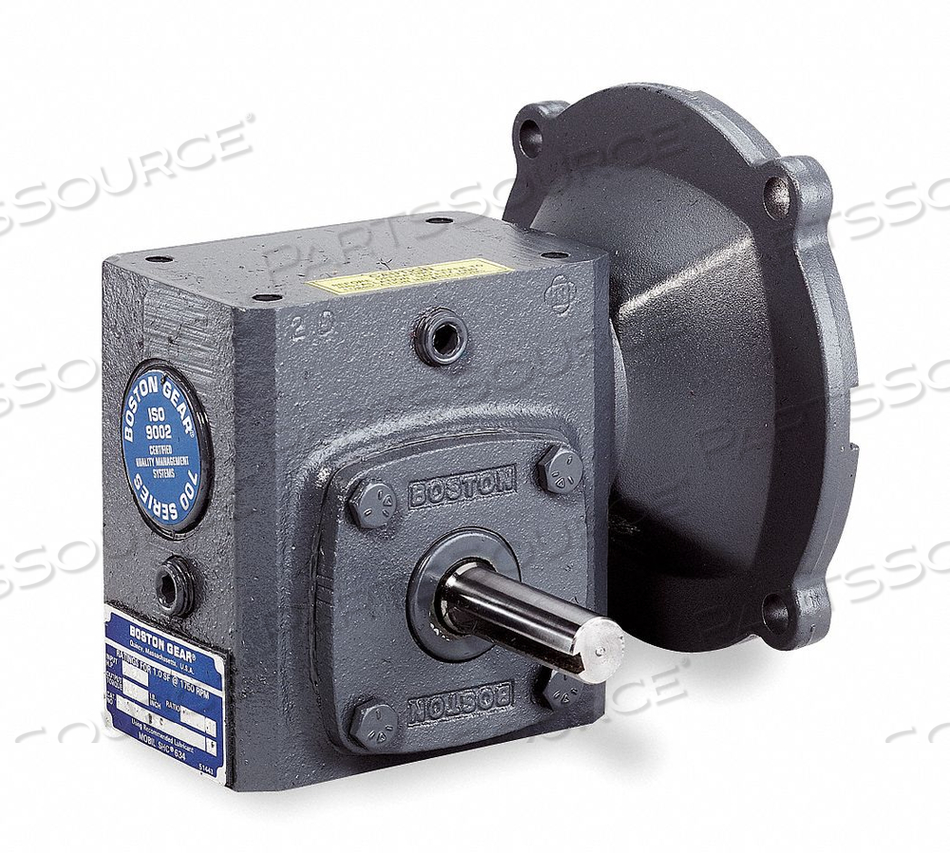

SPEED REDUCER C-FACE 56C 15 1 by Boston Gear
Your price:
$1,178.83 each
OEM#: F718-15-B5-GSPEED REDUCER C-FACE 56C 15 1 by Boston Gear
New OEM Original Outright
Your price:
$1,178.83 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: F718-15-B5-G Key Specs
Item
SPEED REDUCER C-FACE 56C 15 1
OEM
Boston Gear
OEM #
F718-15-B5-G
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Base
Optional
Bearings
Tapered Roller
Bore Dia.
5/8 in
Duty
Standard
Finish
Powdered Epoxy Paint
Frame
56C
Gear Material
Hardened and Ground Steel
Gear Type
Worm
Housing Material
Cast Iron
Input RPM
1,750
Lubrication
Klubersynth UH1 6-460
Max. Input HP
1 hp
Max. Output Torque
422 in-lb
Mounting
Any Position
Nominal Output RPM
117
Nominal Ratio
15:1
Number of Stages
1
Output Shaft Dia.
7/8 in
Output Shaft Height
2 1/16 in
Output Torque @ 1 HP
348 in-lb
Output Torque @ 1.5 HP
422 in-lb
Overhung Load
600 lb
Pinion Material
Hardened Steel
Rotation
Forward/Reversible
Seal Type
Double Lip
Shaft Orientation
Right Angle
Single/Double Output/Universal
Single Output
Solid/Hollow Output Shaft
Solid
Speed Reducer Type
C-Face
Standards
AGMA
Worm Center Distance
1.75 in
Worm Gear Material
Bronze
