OEM#: 060-881-2029New OEM Original Outright

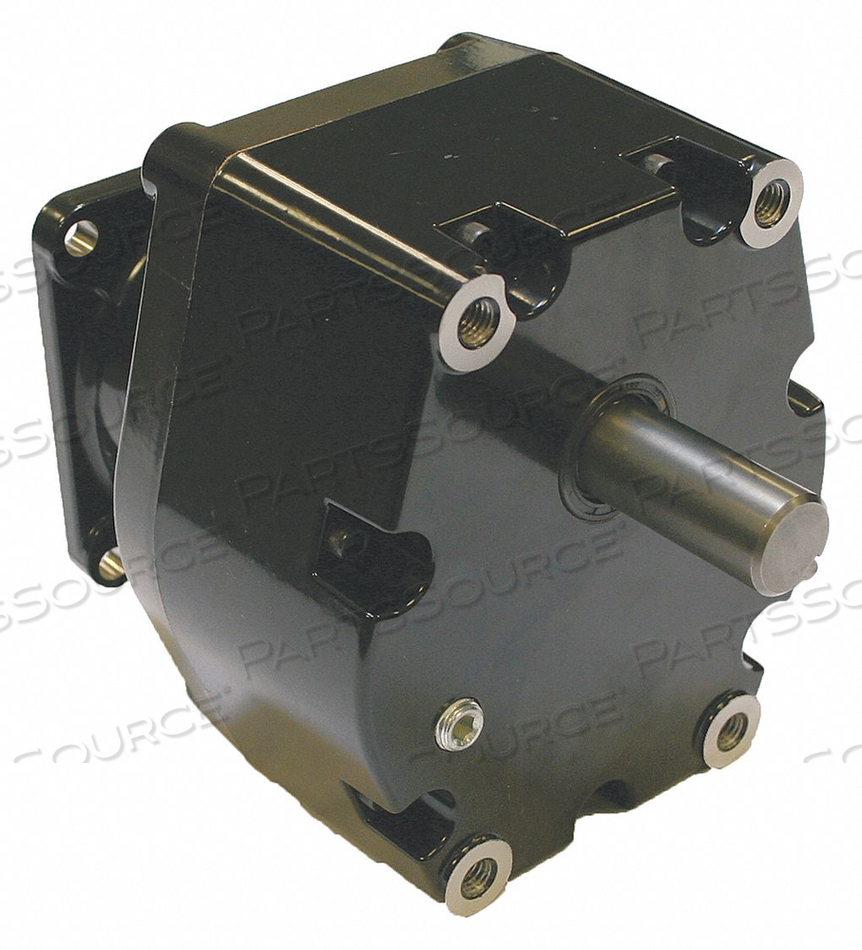

SPEED REDUCER C-FACE PARALLEL 27.8 1 by Bison

Your price:
$2,040.89 eachReady to ship
HomeBison0608812029
SPEED REDUCER C-FACE PARALLEL 27.8 1 by Bison
SPEED REDUCER C-FACE PARALLEL 27.8 1 by Bison

OEM#: 060-881-2029
SPEED REDUCER C-FACE PARALLEL 27.8 1 by Bison

New OEM Original Outright
Your price:
$2,040.89 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 060-881-2029 Key Specs
Item
SPEED REDUCER C-FACE PARALLEL 27.8 1
OEM
Bison
OEM #
060-881-2029
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Base
Optional
Bearings
Ball/Needle
Bore Dia.
5/8 in
Duty
Continuous
Finish
Gloss Black Powder Coated
Frame
56C
Gear Material
Steel
Gear Type
Helical/Spur
Housing Material
Die Cast Aluminum
Input RPM
1,725
Lubrication
Permanent Heavy Duty Gear Oil
Max. Input HP
1 hp
Max. Output Torque
1,137 in-lb
Mounting
Any Position
Nominal Output RPM
60
Nominal Ratio
27.8:1
Number of Stages
3
Output Shaft Dia.
1 in
Output Shaft Height
4 13/16 in
Output Torque @ 1 HP
904 in-lb
Output Torque @ 1/2 HP
452 in-lb
Output Torque @ 1/3 HP
301 in-lb
Output Torque @ 1/4 HP
226 in-lb
Output Torque @ 3/4 HP
678 in-lb
Overall Length
2.13 in
Overhung Load
838 lb
Pinion Material
Hardened Steel
Rotation
Reversible
Seal Type
Single Lip
Shaft Orientation
Parallel
Single/Double Output/Universal
Single Output
Solid/Hollow Output Shaft
Solid
Speed Reducer Type
C-Face
Standards
NEMA 56C
