OEM#: 026-720A0240New OEM Original Outright

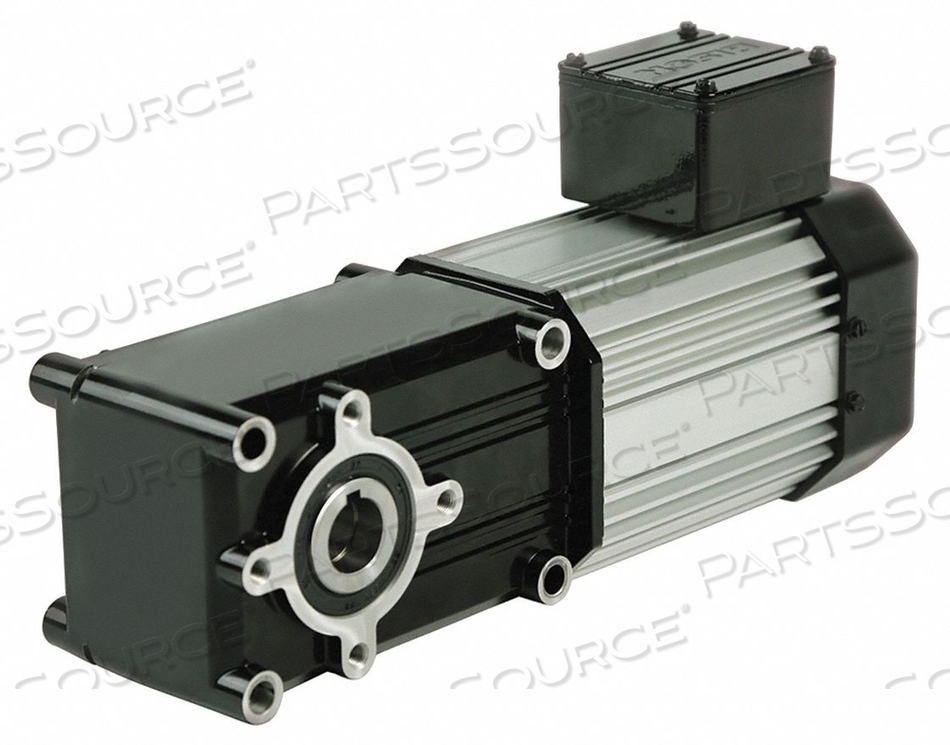

HYPOID GEARMOTOR 7 RPM TEFC 115V by Bison
Your price:
$1,314.27 each
OEM#: 026-720A0240HYPOID GEARMOTOR 7 RPM TEFC 115V by Bison
New OEM Original Outright
Your price:
$1,314.27 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 026-720A0240 Key Specs
Item
HYPOID GEARMOTOR 7 RPM TEFC 115V
OEM
Bison
OEM #
026-720A0240
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Ball
Capacitor Required
24MA47
Finish
Painted
Full Load Amps
1
Gear Case Material
Die Cast Aluminum
Gear Material
Steel
Gear Ratio
240:1
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Right Angle
Gearmotor Shaft Type
Hollow
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115V AC
Gears
Steel
Housing
Die Cast Aluminum
Hz
60 Hz
Input HP
1/15 hp
Insulation Class
F
Keyway Size Type
3/16 sq in x 3/16 in
Length Less Shaft
13 1/16 in
Lubrication
PowerSTAR EP
Max. Ambient Temp.
40 Degrees C
Max. Torque
470.0 in-lb
Motor Type
PSC
Nameplate RPM
7 RPM
No Load RPM
7.1875 RPM
Overall Length
13.12 in
Overhung Load
725 lb
Reversible Shaft Output
Yes
Seals
Double Lip Output
Shaft Dia. (Dimension U)
3/4 in
Standards
UL Recognized, C-UL Recognized, CE Certified
Thermal Protection
None
