OEM#: 017-260-0140New OEM Original Outright

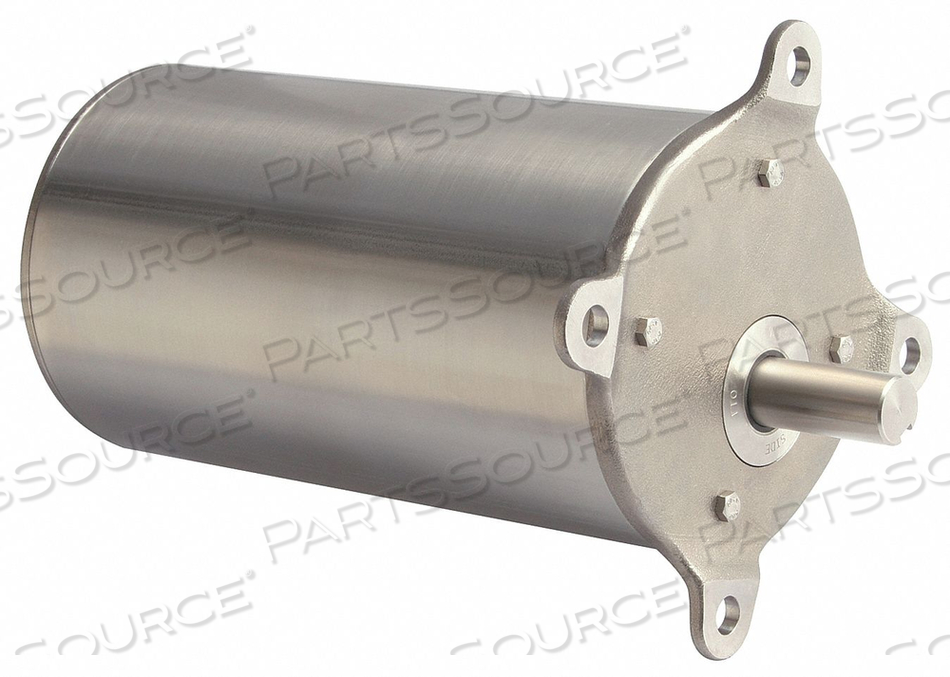

AC GEARMOTOR INVERTER RPM 12 TORQUE 500 by Bison
Your price:
$2,236.14 each
OEM#: 017-260-0140AC GEARMOTOR INVERTER RPM 12 TORQUE 500 by Bison
New OEM Original Outright
Your price:
$2,236.14 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 017-260-0140 Key Specs
Item
AC GEARMOTOR INVERTER RPM 12 TORQUE 500
OEM
Bison
OEM #
017-260-0140
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Washdown
Bearings
Sealed Ball
Finish
Unpainted
Full Load Amps
0.5
Gear Case Material
304 Stainless Steel
Gear Ratio
140:1
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Mounting Position
All Angle
Gearmotor Phase
3
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
230V AC
Gears
Steel
Housing
304 Stainless Steel
Includes
2 Meter Straight Connector Power Cord
Input HP
1/8 hp
Insulation Class
F
Keyway Size Type
6mmSQ X 25mm
Length Less Shaft
223.0 mm
Lubrication
Food-Grade Grease
Max. Ambient Temp.
40 Degrees C
Max. Torque
500.0 in-lb
Motor Type
3-Phase
Nameplate RPM
12 RPM
No Load RPM
12 RPM
Overhung Load
165 lb
RPM @ 50 Hz
8 RPM
Reversible Shaft Output
Yes
Seals
Triple Lip Cartridge Seal With Stainless Slinger
Shaft Dia. (Dimension U)
16 mm
Shaft Length (Dimension V)
40 mm
Standards
UL Listed
Starting Torque
800 in-lb
Thermal Protection
No
