OEM#: AFB24-SRNew OEM Original Outright

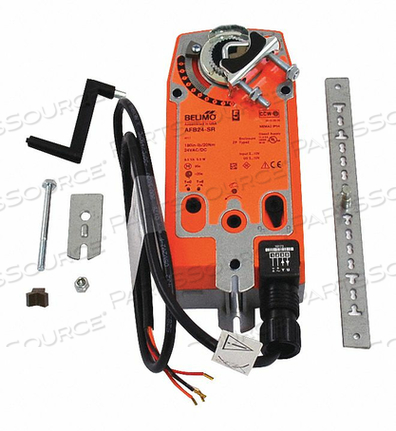

US 24V SPRING RETURN MODULATING ACTUATOR 2-10VDC 4-20MA 180IN-LB by Belimo
Your price:
$554.30 each
OEM#: AFB24-SRUS 24V SPRING RETURN MODULATING ACTUATOR 2-10VDC 4-20MA 180IN-LB by Belimo
New OEM Original Outright
Your price:
$554.30 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: AFB24-SR Key Specs
Item
US 24V SPRING RETURN MODULATING ACTUATOR 2-10VDC 4-20MA 180IN-LB
OEM
Belimo
OEM #
AFB24-SR
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Angle of Rotation
95 Degree
Application
HVAC System
Approval
UL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001
Body Material
Zinc Coated Metal, Plastic Casing
Enclosure
NEMA 2, IP54
Frequency Rating
50/60 Hertz
Maximum AC Voltage
24 Volt
Maximum DC Voltage
24 Volt
Operating Temperature
-22 to 122 Deg F
Operation Type
Spring Return
Output Signal
2 to 10 Volt DC, 0.5 Milliamp
Power Rating
5.5 Watt (Running), 3 Watt (Holding)
Seriesmodel
AFB
Shaft Diameter
1/2 to 1.05 Inch
Size
3.15 Inch Width x 3.42 Inch Depth x 9.69 Inch Height
Supply Connection Size
3 Foot 18 AWG Appliance Cable with 1/2 Inch Conduit Connector
Torque
180 Inch-Pound
Type
Direct Coupled, Modulating
Voltage Rating
24 Volt AC/DC
