OEM#: ESU-2400New OEM Original Outright

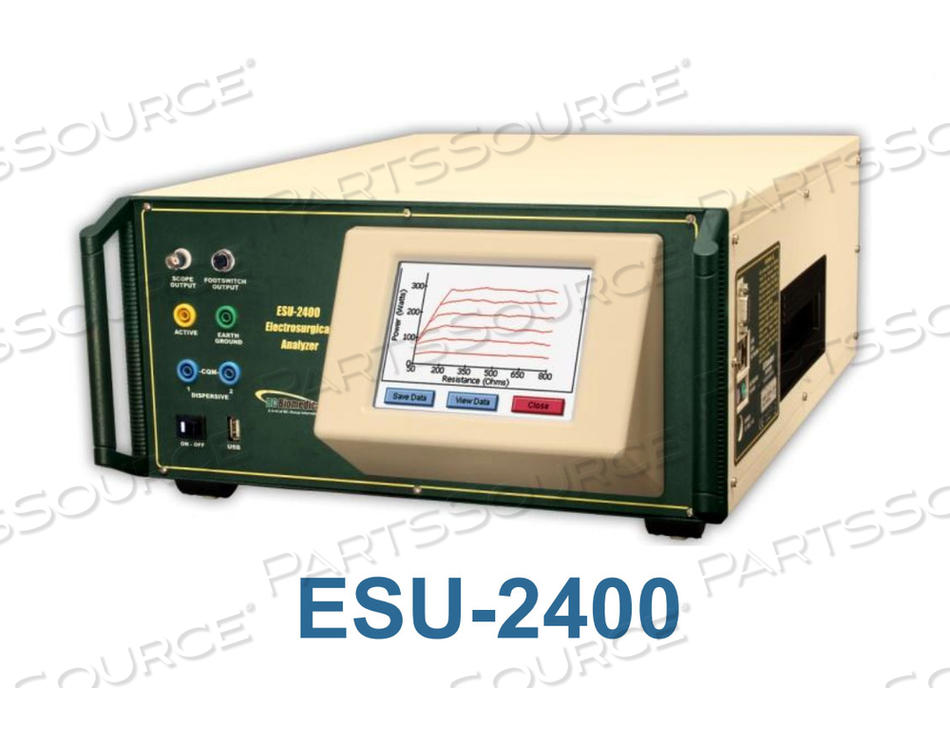

ESU ANALYZER, 2 TO 700 MV RMS, 14 BITS, 64 MSPS, +/-1% ACCURACY, 20 TO 7000 MA RMS, 500 W, 7.8 X 15 X 22.5 IN by BC Group International, Inc. (BC Biomedical)
Your price:
$11,251.91 eachEstimated to ship by 04/30 if ordered before 11:30 AM EST
OEM#: ESU-2400ESU ANALYZER, 2 TO 700 MV RMS, 14 BITS, 64 MSPS, +/-1% ACCURACY, 20 TO 7000 MA RMS, 500 W, 7.8 X 15 X 22.5 IN by BC Group International, Inc. (BC Biomedical)
New OEM Original Outright
Your price:
$11,251.91 each
Estimated to ship by 04/30 if ordered before 11:30 AM EST
Asset Information
ADD TO LIST
Product Overview
The ESU-2400, unlike many conventional ESU Analyzers, has internal HV setup relays to control the measurement path, allowing the user to switch between power measurements, leakage measurements, CQM/RECQM/ARM testing or even run an autosequence that could include any or all of these tests – without even moving wires around, The current transformer internal to the ESU-2400 senses the RF current flowing through the internal test load and produces a ratiometric voltage which is digitized and analyzed by the microprocessor. combining the standard and low ranges of the ESU-2400 with the use of the current transformer, the user has full control over the ability to get high accuracy and high resolution readings from all types of electrosurgical Generators, mV, mV peak, ma, crest factor and power (wattage) ranges, Color QVGA display with touchscreen, 1% of reading measurement accuracy, digital calibration – no pots to turn, Selectable display options, Graphical on-screen representation of measured RF signal, Standard (1000 mV) and low range (100 mV) with autoscaling capability, Pulsed RF waveform measurement mode for low duty cycle pulsed outputs offered by some electrosurgical manufacturers.
Features
- Manufacturer: BC Group International, Inc. (BC Biomedical)
- Condition: New OEM Original
- Purchase Type: Outright
- Warranty: 12 Month
- Returnable: Yes
- True RMS Readings Using DFA Technology
- Industry Standard Current Sensing Technology
Fitments
- CONMED
- HYFRECATOR 2000
- SYSTEM 5000
Technical Specs
P/N: ESU-2400 Key Specs
Item
ESU ANALYZER, 2 TO 700 MV RMS, 14 BITS, 64 MSPS, +/-1% ACCURACY, 20 TO 7000 MA RMS, 500 W, 7.8 X 15 X 22.5 IN
OEM
BC Group International, Inc. (BC Biomedical)
OEM #
ESU-2400
Condition
New OEM Original
Returnable
Yes
A/D Resolution
14 bits
A/D Speed
64 MSPS
Accuracy
+/-1%
Bandwidth
50 kHz ? 10 MHz
Crest Factor Range
1.4 to 500
Crest Factor Resolution
0.1
Current Rating
20 to 7000 mA RMS
External Load Range
0 to 6400 OHM
External Load Resolution
1 OHM
Internal Load Accuracy
± 1% Non-inductive
Internal Load Range
0 to 6400 OHM
Measurement Accuracy
± 1% Reading
Operating Range
15 to 30°C (59 to 86°F)
Power Range
500 W
Power Range (Watts)
500
Power Rating
500 W
Power Resolution
0.1 W
Resolution
14 Bits
Speed
64 MSPS
Storage Range
-20°C to 60°C (-4°F to 140°F)
Voltage Rating
2 to 700 MV RMS
mV Peak/Peak-to-Peak Range
0.0 to 1.0
mV Peak/Peak-to-Peak Resolution
0.1
The ESU-2400, unlike many conventional ESU Analyzers, has internal HV setup relays to control the measurement path, allowing the user to switch between power measurements, leakage measurements, CQM/RECQM/ARM testing or even run an autosequence that could include any or all of these tests – without even moving wires around, The current transformer internal to the ESU-2400 senses the RF current flowing through the internal test load and produces a ratiometric voltage which is digitized and analyzed by the microprocessor. combining the standard and low ranges of the ESU-2400 with the use of the current transformer, the user has full control over the ability to get high accuracy and high resolution readings from all types of electrosurgical Generators, mV, mV peak, ma, crest factor and power (wattage) ranges, Color QVGA display with touchscreen, 1% of reading measurement accuracy, digital calibration – no pots to turn, Selectable display options, Graphical on-screen representation of measured RF signal, Standard (1000 mV) and low range (100 mV) with autoscaling capability, Pulsed RF waveform measurement mode for low duty cycle pulsed outputs offered by some electrosurgical manufacturers.
- CONMED
- HYFRECATOR 2000
- SYSTEM 5000
