OEM#: OGX-1900-ANew OEM Original Outright

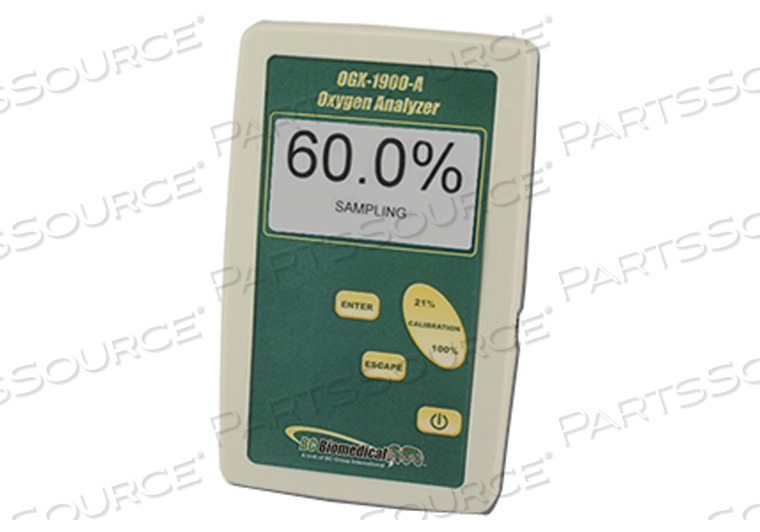

OXYGEN ANALYZER by BC Group International, Inc. (BC Biomedical)
Your price:
$592.55 each
OEM#: OGX-1900-AOXYGEN ANALYZER by BC Group International, Inc. (BC Biomedical)
New OEM Original Outright
Your price:
$592.55 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
The large backlit LCD for easy viewing, integral tripod stand and dove tail bracket. Proprietary advanced galvanic Sensor capable of oxygen analysis from 0-100% and 60 months expected life in air. General purpose analyzer operates 1,500 hours on 2 AA Alkaline batteries.
- State of the art electronics
- Auto Diagnostics
- Intuitive Interface
- Integral Tripod and Pole Bracket
- Large Backlit Display
- Latex-Free Analyzer & Sensor
- No warm up time
- Response Time of 90% of final FS reading in 9 seconds
- Backlit Display
- Soft touch keypad
- Sensor Life 60 months in air at 25°C and 1 atmosphere
- Temperature compensated
- Connections 1x16 mm thread or push-in flow diverter with O-ring seal
- Soft touch keypad for ON/OFF
- Display 3- 1/2 digital backlit LCD 2.5” x 1.5”; resolution 0.1% O2
Application:
- Anesthesia
- Respiratory Therapy- Ventilators, Respirators
- Neonatal & Pediatric Incubators & Hoods
- Oxygen Therapy - Intensive Care
- Emergency Transport
Includes:
- Oxygen Sensor
- 1.5 V AA Batteries (2)
- Coil Cable
- Blue Tee Adapter
Features
- 18 Months Sensor Warranty
- 2 Years Analyzer Warranty
- Pressure Inlet: Ambient
- Pressure Ventilator: Atmosphere
Technical Specs
P/N: OGX-1900-A Key Specs
Item
OXYGEN ANALYZER
OEM
BC Group International, Inc. (BC Biomedical)
OEM #
OGX-1900-A
Condition
New OEM Original
Returnable
No
Warranty
12 Month
Accuracy
<±1% of FS
Analysis
0-100% Oxygen
Battery Life
1200 H
Battery Size
AA
Chemical System
Alkaline
Compatible Products
Spot checking respiratory therapy ventilators; Neo-natal incubators; Anesthesia
Display
LCD
Flow Sensitivity
0.2 to 10 L Per Min
Humidity
Non-Condensing 0-95% RH
Includes
Oxygen Sensor - AII-11-60; 1.5 V AA Batteries (2); Coil Cable - CABL-1006; Blue Tee Adapter - FITN-1009; Instruction Manual - P-1087; NIST Calibration Certificate
Linearity
±1%
Range
0 to 100 %
Response Time
90% of final FS reading in 9 Secs
Sensitivity
< 0.5% of FS
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Temperature Range
5°C to 45°C (41°F to 113°F)
Certifications
The large backlit LCD for easy viewing, integral tripod stand and dove tail bracket. Proprietary advanced galvanic Sensor capable of oxygen analysis from 0-100% and 60 months expected life in air. General purpose analyzer operates 1,500 hours on 2 AA Alkaline batteries.
- State of the art electronics
- Auto Diagnostics
- Intuitive Interface
- Integral Tripod and Pole Bracket
- Large Backlit Display
- Latex-Free Analyzer & Sensor
- No warm up time
- Response Time of 90% of final FS reading in 9 seconds
- Backlit Display
- Soft touch keypad
- Sensor Life 60 months in air at 25°C and 1 atmosphere
- Temperature compensated
- Connections 1x16 mm thread or push-in flow diverter with O-ring seal
- Soft touch keypad for ON/OFF
- Display 3- 1/2 digital backlit LCD 2.5” x 1.5”; resolution 0.1% O2
Application:
- Anesthesia
- Respiratory Therapy- Ventilators, Respirators
- Neonatal & Pediatric Incubators & Hoods
- Oxygen Therapy - Intensive Care
- Emergency Transport
Includes:
- Oxygen Sensor
- 1.5 V AA Batteries (2)
- Coil Cable
- Blue Tee Adapter
