OEM#: VL3515TNew OEM Original Outright

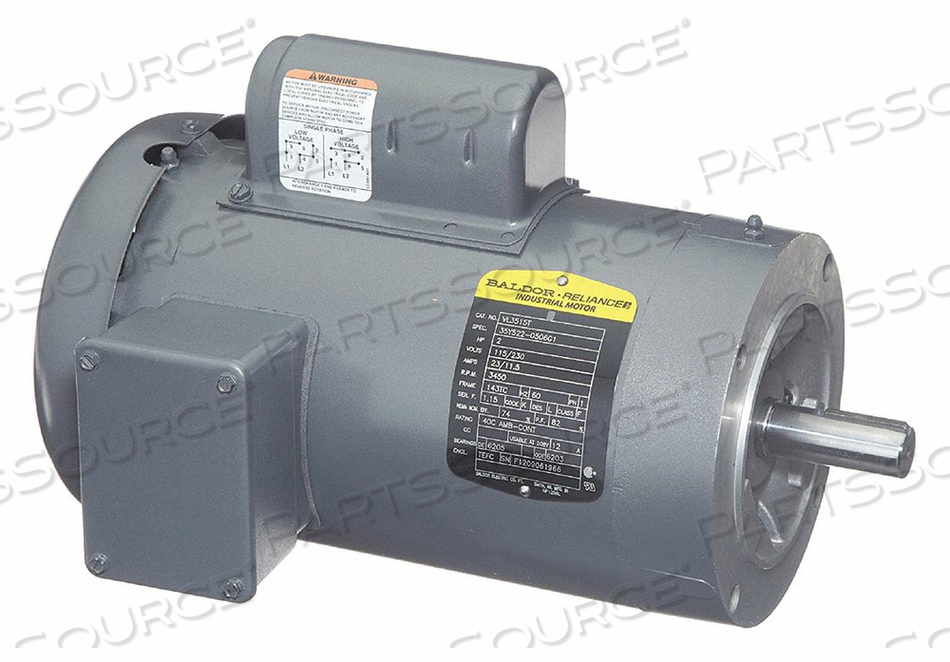

MOTOR 2 HP 3450 RPM 115/230V 145TC TEFC by BALDOR
Your price:
$1,681.97 each
OEM#: VL3515TMOTOR 2 HP 3450 RPM 115/230V 145TC TEFC by BALDOR
New OEM Original Outright
Your price:
$1,681.97 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: VL3515T Key Specs
Item
MOTOR 2 HP 3450 RPM 115/230V 145TC TEFC
OEM
BALDOR
OEM #
VL3515T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC031A
Country of Origin
USA
Duty
Continuous
Frame
145TC
Full Load Amps
23/11.5
HP
2 hp
Hz
60
Includes
Conduit Box
Ins. Class
F
Length Less Shaft
12-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3450
Nominal Efficiency
74 %
Number of Speeds
1
Overall Length
14-3/16 in
Phase
1
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
7/8 in
Shaft Length
2-1/4 in
Standards
CSA, UL
Voltage
115/230
