OEM#: M3461New OEM Original Outright

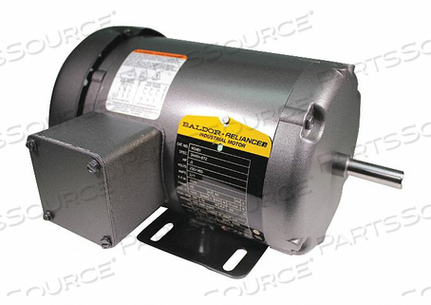

MOTOR 3-PH TEFC 1/2 HP 1725 RPM FOOT by BALDOR
Your price:
$925.64 each
OEM#: M3461MOTOR 3-PH TEFC 1/2 HP 1725 RPM FOOT by BALDOR
New OEM Original Outright
Your price:
$925.64 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: M3461 Key Specs
Item
MOTOR 3-PH TEFC 1/2 HP 1725 RPM FOOT
OEM
BALDOR
OEM #
M3461
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC031A
Country of Origin
USA
Duty
Continuous
Frame
48
Full Load Amps
2/1
HP
1/2 hp
Hz
60
Includes
Conduit Box
Ins. Class
B
Inverter Rated
No
Length Less Shaft
9 15/64 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
74 %
Number of Speeds
1
Overall Length
10-3/4 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
CSA, UL
Voltage
230/460
