OEM#: M1712TNew OEM Original Outright
MOTOR, 20/10HP, 1760/870RPM, 3PH, 60HZ, 284T, 1046M by BALDOR
Your price:
$12,376.76 each
OEM#: M1712TMOTOR, 20/10HP, 1760/870RPM, 3PH, 60HZ, 284T, 1046M by BALDOR
New OEM Original Outright
Your price:
$12,376.76 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

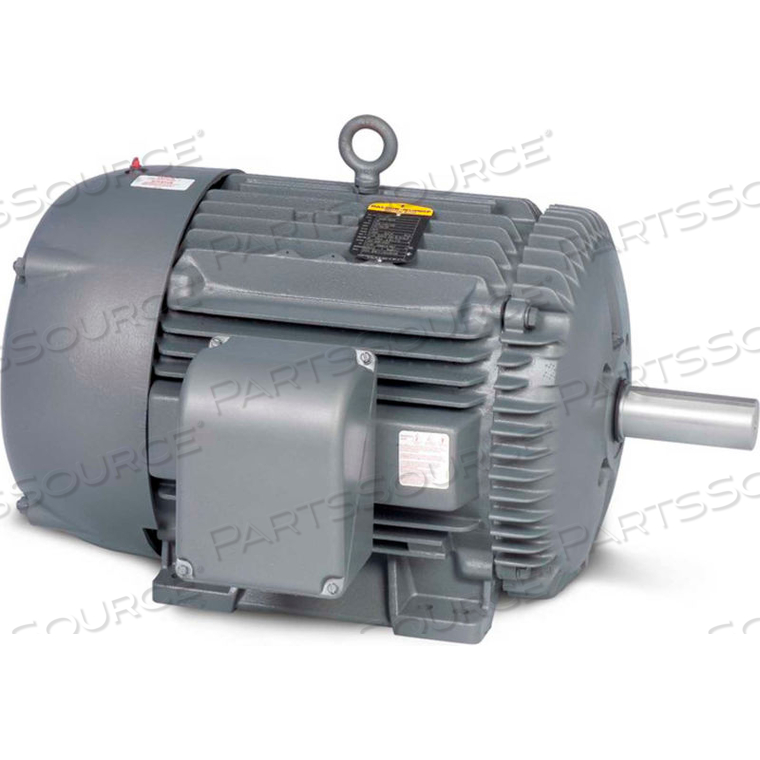

Baldor-Reliance Motor, 20/10HP,1760/870RPM,3PH,60HZ,284T,1046M
Features:
- Lifting eye bold mounted at top center 215T frame and larger for easy handling
- Copper windings
- Dynamically balanced rotors
Fans, blowers, machine tools, hoists, conveyors, pumps.
Technical Specs
P/N: M1712T Key Specs
Item
MOTOR, 20/10HP, 1760/870RPM, 3PH, 60HZ, 284T, 1046M
OEM
BALDOR
OEM #
M1712T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Baldor Catalog Number
M1712T
Bearing-Drive-End
6311
C-Dimension Inches
27.76
Country of Origin
USA
Design Code
B
Drive End Flange
Standard
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
25/18.5
Frame
284T
Hertz
60
Horsepower
20
Insulation Class
F
Kva-Code
G
Mounting
Rigid
Opposite End Bearing
6309
Phase
3
Poles
4; 8
Rpm
1760/870
Rpm Range
1701-1800
Service Factor
1.15
Spec. Number
10C151Y731
Voltage
460
Weight
389
Baldor-Reliance Motor, 20/10HP,1760/870RPM,3PH,60HZ,284T,1046M
Features:
- Lifting eye bold mounted at top center 215T frame and larger for easy handling
- Copper windings
- Dynamically balanced rotors
Fans, blowers, machine tools, hoists, conveyors, pumps.
