OEM#: L3605T-50New OEM Original Outright

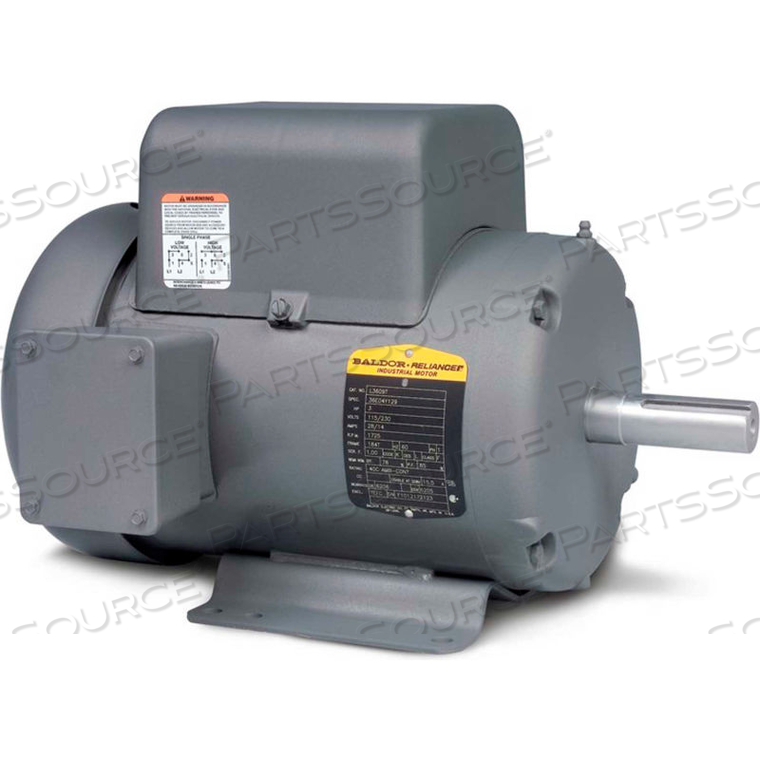

MOTOR, 2HP, 1425RPM, 1PH, 50HZ, 182T, 3634LC, TEFC, F1 by BALDOR

Your price:
$1,879.70 eachReady to ship
HomeBALDORl3605t50
MOTOR, 2HP, 1425RPM, 1PH, 50HZ, 182T, 3634LC, TEFC, F1 by BALDOR
MOTOR, 2HP, 1425RPM, 1PH, 50HZ, 182T, 3634LC, TEFC, F1 by BALDOR

OEM#: L3605T-50
MOTOR, 2HP, 1425RPM, 1PH, 50HZ, 182T, 3634LC, TEFC, F1 by BALDOR

New OEM Original Outright
Your price:
$1,879.70 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

Baldor-Reliance Motor, 2HP,1425RPM,1PH,50HZ,182T,3634LC,TEFC,F1

Features:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
Typical Applications:
Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/-½ 15% on voltage.

Technical Specs
P/N: L3605T-50 Key Specs
Item
MOTOR, 2HP, 1425RPM, 1PH, 50HZ, 182T, 3634LC, TEFC, F1
OEM
BALDOR
OEM #
L3605T-50
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Bearing-Drive-End
6206
Bearing-Opp-Drive-End
6205
C-Dimension Inches
16.56
Country of Origin
USA
Design Code
L
Drive End Flange
Standard
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
20/10
Fl Efficiency
81
Frame
182T
Hertz
50
Horsepower
2
Insulation Class
B
Is_Motor
Yes
Kva-Code
H
Motor Rpm 50Hz
1425
Mounting
Rigid
Nameplate Rpm
1425
Phase
1
Poles
4
Power-Factor
85
Rpm Range
1401-1500
Service Factor
1.15
Spec. Number
36E04X353
Voltage
110/220
Weight
78

Baldor-Reliance Motor, 2HP,1425RPM,1PH,50HZ,182T,3634LC,TEFC,F1

Features:

  • Windings tied each end at every slot for rigidity
  • Ball bearings
  • High temperature insulation
  • Copper windings
Typical Applications:
Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/-½ 15% on voltage.
