OEM#: IDVSWDM3615TNew OEM Original Outright

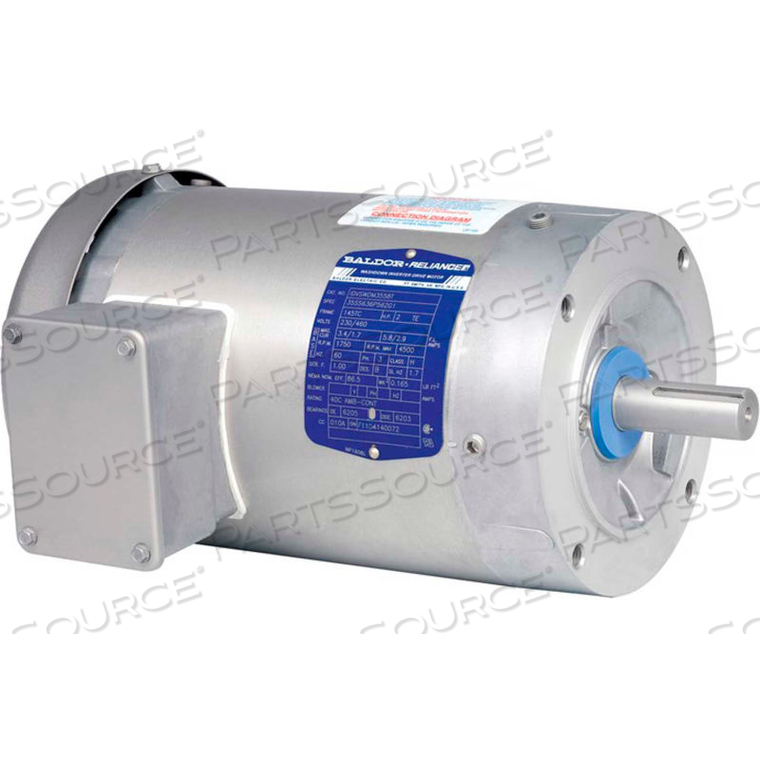

WASHDOWN MOTOR, 3 PHASE, 5 HP, 1750 RPM, 230/460 VOLTS, TENV, 184TC FR by BALDOR
Your price:
$4,220.73 each
OEM#: IDVSWDM3615TWASHDOWN MOTOR, 3 PHASE, 5 HP, 1750 RPM, 230/460 VOLTS, TENV, 184TC FR by BALDOR
New OEM Original Outright
Your price:
$4,220.73 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Washdown Motor IDVSWDM3615T, 3 Phase, 5 HP, 1750 RPM, 230/460 Volts, TENV, 184TC FR
Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.
Features
Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.
Features
- Includes all the advantages of our standard Paint Free washdown duty motors
- Specifically designed and built for use on variable frequency drives
- Meets NEMA MG 1, Part 31
- Conveyors, Pumps and other equipment in food processing and other severe environments where motors are washed on a regular basis. For adjustable speed applications not requiring full torque at zero speed.
Technical Specs
P/N: IDVSWDM3615T Key Specs
Item
WASHDOWN MOTOR, 3 PHASE, 5 HP, 1750 RPM, 230/460 VOLTS, TENV, 184TC FR
OEM
BALDOR
OEM #
IDVSWDM3615T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Baldor Catalog Number
IDVSWDM3615T
Bearing-Drive-End
6206
Bearing-Opp-Drive-End
6205
C-Dimension Inches
18.06
Country of Origin
USA
Design Code
B
Doe-Code
010A
Duty
Continuous
Enclosure
TENV
Enclosure Type
Totally Enclosed
Fl Amps
13/6.5
Fl Efficiency
89.5
Frame
184TC
Hertz
60
Horsepower
5
Insulation Class
H
Is_Motor
Yes
Magnetizing-Current
5.8/2.9
Maximum-Rpm
6000
Motor Rpm 60Hz
1750
Mounting
C-Face Footless
Phase
3
Rpm
1750
Rpm Range
1701-1800
Service Factor
1
Slip-Hertz
1.7
Specification Number
36K606S719G1
Type
Washdown Motor
Voltage
230/460
Baldor-Reliance Washdown Motor IDVSWDM3615T, 3 Phase, 5 HP, 1750 RPM, 230/460 Volts, TENV, 184TC FR
Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.
Features
Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.
Features
- Includes all the advantages of our standard Paint Free washdown duty motors
- Specifically designed and built for use on variable frequency drives
- Meets NEMA MG 1, Part 31
- Conveyors, Pumps and other equipment in food processing and other severe environments where motors are washed on a regular basis. For adjustable speed applications not requiring full torque at zero speed.
