OEM#: IDVSM4316TNew OEM Original Outright

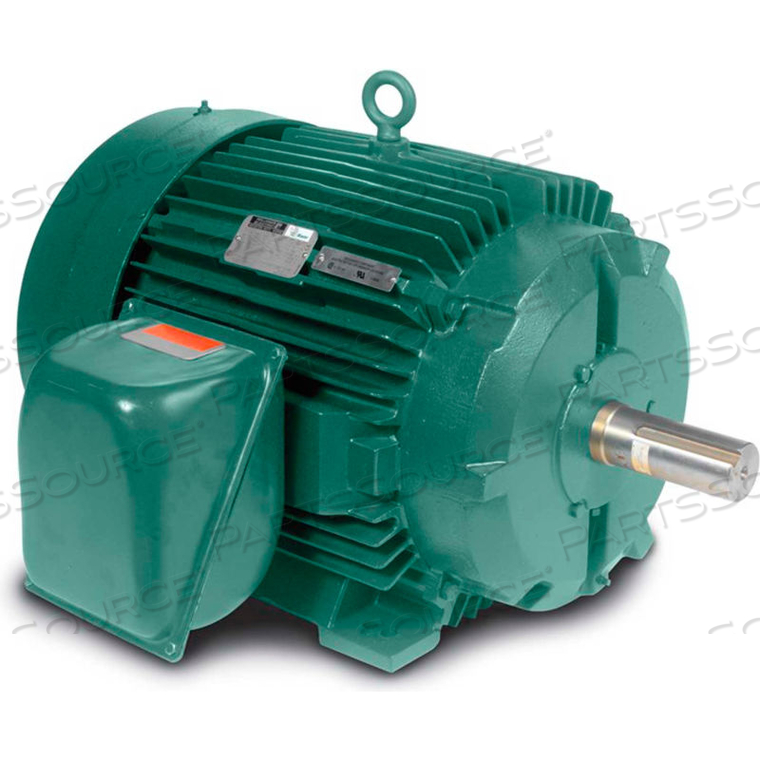

MOTOR, 75HP, 1800RPM, 3PH, 60HZ, 365T, TEFC, FOOT by BALDOR
Your price:
$21,805.33 each
OEM#: IDVSM4316TMOTOR, 75HP, 1800RPM, 3PH, 60HZ, 365T, TEFC, FOOT by BALDOR
New OEM Original Outright
Your price:
$21,805.33 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 75HP,1800RPM,3PH,60HZ,365T,TEFC,FOOT,
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Technical Specs
P/N: IDVSM4316T Key Specs
Item
MOTOR, 75HP, 1800RPM, 3PH, 60HZ, 365T, TEFC, FOOT
OEM
BALDOR
OEM #
IDVSM4316T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Baldor Catalog Number
IDVSM4316T
Brg-De-Afbma
65BC03J30X
Brg-Ode-Afbma
65BC03J30X
C-Dimension Inches
33.44
Constant-Torq-Hertz
41.66736111
Country of Origin
USA
Drive End Flange
Standard
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
365T
Horsepower
75
Insulation Class
F
Is_Motor
Yes
Magnetizing-Current
30.7
Maximum-Rpm
3600
Motor Rpm 60Hz
1785
Motor-Base-Amps
178/89.2
Motor-Base-Hp
75
Motor-Base-Hz
60
Motor-Base-Rpm
1785
Motor-Base-Volts
230/460
Motor-Max-Amps
171/85.6
Motor-Max-Hp
75
Motor-Max-Hz
90
Motor-Max-Rpm
2675
Motor-Max-Volts
230/460
Phase
3
Poles
4
Reliance Number
W00984A A 002
Rotor-Inertia
15.7
Rpm
1785
Rpm Range
1701-1800
Service Factor
1
Spec. Number
P36G3222
Temp. Code
2
Type
P
Weight
888
Baldor-Reliance Motor, 75HP,1800RPM,3PH,60HZ,365T,TEFC,FOOT,
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
