OEM#: ZDVSNM2238TNew OEM Original Outright

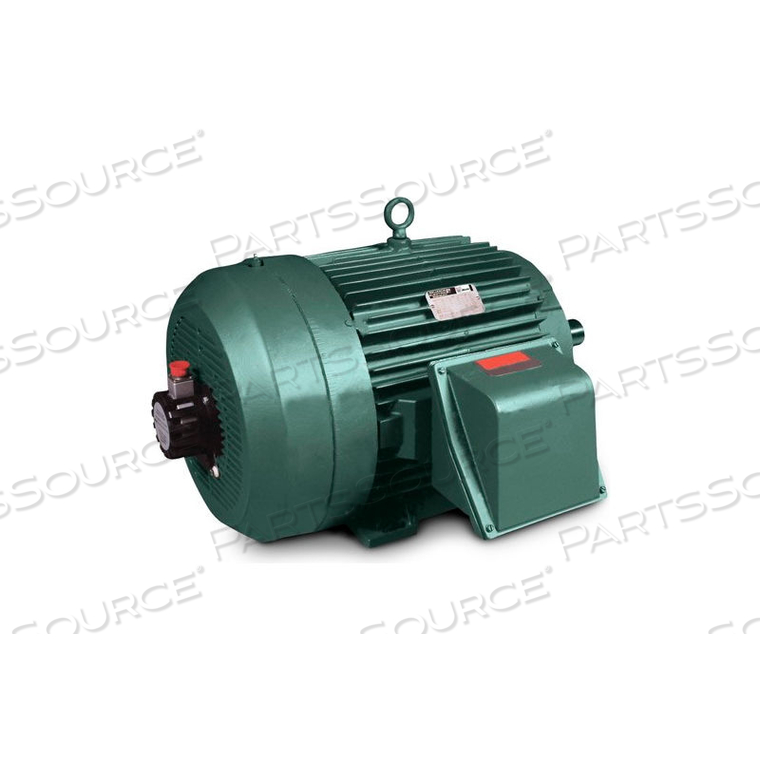

MOTOR, 10HP, 1800RPM, 3PH, 60HZ, 254TC, TENV, FOOT by BALDOR
Your price:
$10,399.04 each
OEM#: ZDVSNM2238TMOTOR, 10HP, 1800RPM, 3PH, 60HZ, 254TC, TENV, FOOT by BALDOR
New OEM Original Outright
Your price:
$10,399.04 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 10HP,1800RPM,3PH,60HZ,254TC,TENV,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Technical Specs
P/N: ZDVSNM2238T Key Specs
Item
MOTOR, 10HP, 1800RPM, 3PH, 60HZ, 254TC, TENV, FOOT
OEM
BALDOR
OEM #
ZDVSNM2238T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature (°C)
40
Baldor Catalog Number
ZDVSNM2238T
Bearing Drive End (AFBMA standard)
45BC03J30X
Bearing Opposite Drive End (AFBMA standard)
45BC03J30X
Constant-Torq-Hertz
1000 1
Country of Origin
USA
Dimension C (in)
23.78
Drive End Flange
C-Face
Duty
Continuous
Enclosure
TENV
Enclosure Type
Totally Enclosed
Frame
254TC
Horsepower
10
Insulation Class
F
Is Motor
Yes
Magnetizing-Current
10/5
Maximum Motor Amps
23.8/11.9
Maximum Motor Hertz
90
Maximum Motor Horsepower
10
Maximum Motor RPM
2660
Maximum Motor Volts
230/460
Maximum RPM
5400
Motor Base Amps
25.4/12.7
Motor Base Hertz
60
Motor Base Horsepower
10
Motor Base RPM
1775
Motor Base Volts
230/460
Motor RPM 60 Hertz
1770
Phase
3
Poles
4
RPM
1770
RPM Range
1701-1800
Reliance Number
W01029A A 001
Rotor Inertia
1.64
Service Factor
1
Spec. Number
P25G1178
Temperature Code
2
Type
P
Weight
359
Baldor-Reliance Motor, 10HP,1800RPM,3PH,60HZ,254TC,TENV,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
