OEM#: ZDM3661TNew OEM Original Outright

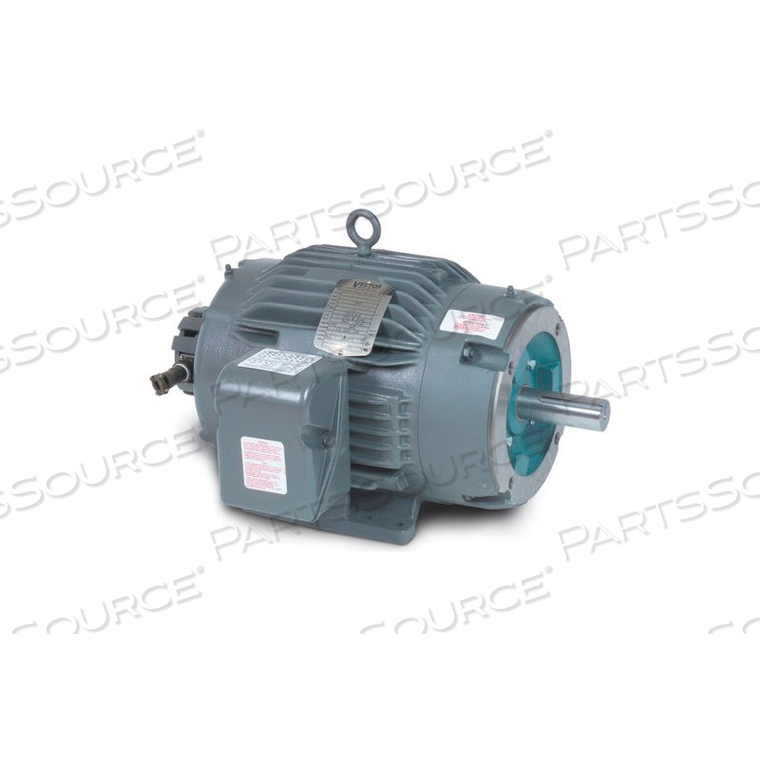

MOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 0628M, TEBC, F1 by BALDOR
Your price:
$7,266.74 each
OEM#: ZDM3661TMOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 0628M, TEBC, F1 by BALDOR
New OEM Original Outright
Your price:
$7,266.74 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 3HP,1760RPM,3PH,60HZ,182TC,0628M,TEBC,F1
Features:
- Full torque at zero speed
- 1000:1 constant torque range
- Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
- 1/3 thru 500 horsepower
- Cast Iron construction
- C-Face with base 143TC thru 449TC
- Base mount only in frames 5007L-5009L
- Class H Insulated
- ISR® (Inverter Spike Resistant) magnet wire
- Meets NEMA MG 1, Part 31
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.
Technical Specs
P/N: ZDM3661T Key Specs
Item
MOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 0628M, TEBC, F1
OEM
BALDOR
OEM #
ZDM3661T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Baldor Catalog Number
ZDM3661T
Bearing-Drive-End
6206
Blower-Amps
0.26
Blower-Hertz
60
Blower-Phase
1
Blower-Volts
115
C-Dimension Inches
21.71
Country of Origin
USA
Design Code
B
Drive End Flange
C-Face
Enclosure
TEBC
Enclosure Type
Totally Enclosed
Fl Amps
8/4
Fl Efficiency
89.5
Frame
182TC
Hertz
60
Horsepower
3
Insulation Class
H
Is_Motor
Yes
Magnetizing-Current
4.2/2.1
Maximum-Rpm
6000
Motor Rpm 60Hz
1760
Mounting
Rigid
Opposite End Bearing
6205
Phase
3
Poles
4
Rotor-Inertia
0.26
Rpm
1760
Rpm Range
1701-1800
Service Factor
1
Slip-Hertz
1.3
Spec. Number
06F552W356Z1
Voltage
230/460
Weight
106
Baldor-Reliance Motor, 3HP,1760RPM,3PH,60HZ,182TC,0628M,TEBC,F1
Features:
- Full torque at zero speed
- 1000:1 constant torque range
- Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
- 1/3 thru 500 horsepower
- Cast Iron construction
- C-Face with base 143TC thru 449TC
- Base mount only in frames 5007L-5009L
- Class H Insulated
- ISR® (Inverter Spike Resistant) magnet wire
- Meets NEMA MG 1, Part 31
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.
