OEM#: VP3455DNew OEM Original Outright

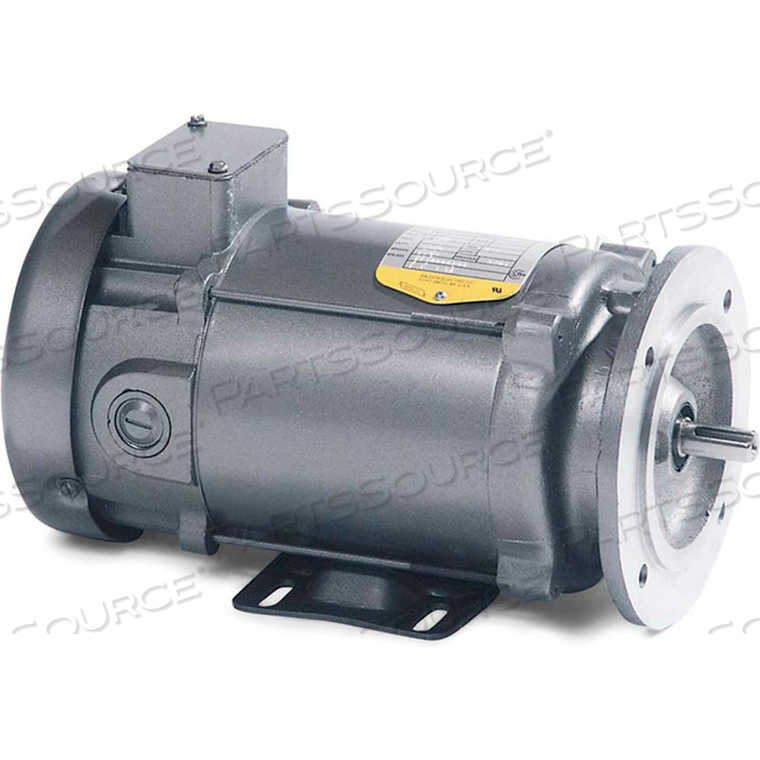

DC METRIC MOTOR, 1 HP, 1750 RPM, TEFC, D80D FRAME by BALDOR
Your price:
$2,065.46 each
OEM#: VP3455DDC METRIC MOTOR, 1 HP, 1750 RPM, TEFC, D80D FRAME by BALDOR
New OEM Original Outright
Your price:
$2,065.46 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance DC Metric Motor, VP3455D, 1 HP, 1750 RPM, TEFC, D80D Frame
Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.
Features
Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.
Features
- Metric Flange or C-Face per IEC Standards
- Bolt on non-metric base
- Class F insulation
- Tach adaptable except type 135S
- 20:1 constant torque speed range
- Type 135S and 3300P motors are TENV, all others are TEFC
- SCR Drive Motors for replacement on machinery requiring metirc mounting dimensions.
Technical Specs
P/N: VP3455D Key Specs
Item
DC METRIC MOTOR, 1 HP, 1750 RPM, TEFC, D80D FRAME
OEM
BALDOR
OEM #
VP3455D
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Armature Voltage
180
Baldor Catalog Number
VP3455D
Country of Origin
USA
Drive End Bearing Size
6206
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Field Voltage
180
Frame
D80D
Full Load Amps - Armature
5
Horsepower
1
Insulation Class
F
Is_Motor
Yes
Motor Rpm 60Hz
1750
Mounting
FF-Flange Rigid
Nameplate Rpm
1750
Opposite End Bearing
6203
Rpm Range
1701-1800
Specification Number
34-6483-3865
Voltage
180
Baldor-Reliance DC Metric Motor, VP3455D, 1 HP, 1750 RPM, TEFC, D80D Frame
Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.
Features
Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.
Features
- Metric Flange or C-Face per IEC Standards
- Bolt on non-metric base
- Class F insulation
- Tach adaptable except type 135S
- 20:1 constant torque speed range
- Type 135S and 3300P motors are TENV, all others are TEFC
- SCR Drive Motors for replacement on machinery requiring metirc mounting dimensions.
