OEM#: VEBM3611TNew OEM Original Outright

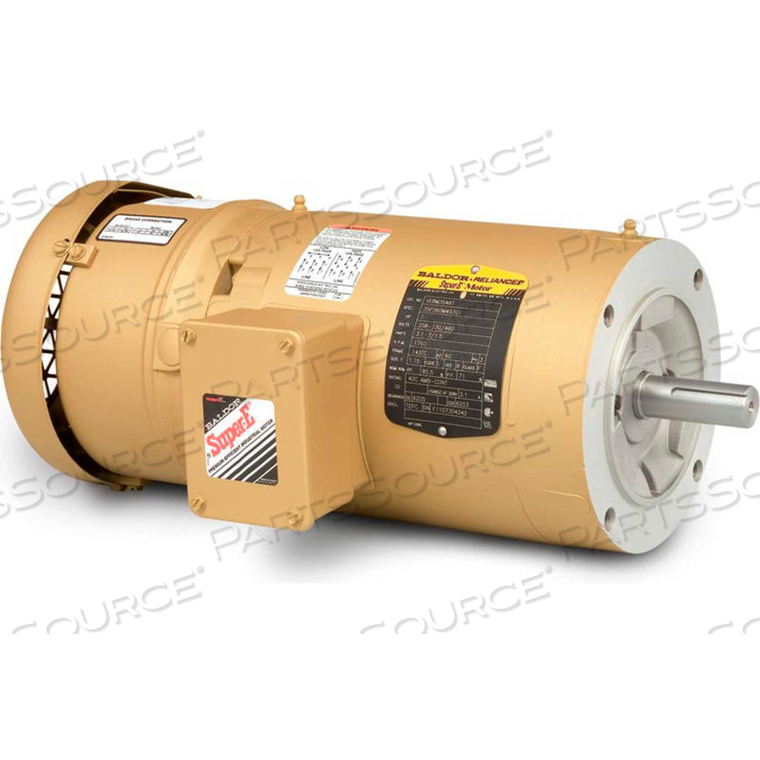

MOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1 by BALDOR

Your price:
$3,288.50 eachReady to ship
HomeBALDORVEBM3611T
MOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1 by BALDOR
MOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1 by BALDOR

OEM#: VEBM3611T
MOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1 by BALDOR

New OEM Original Outright
Your price:
$3,288.50 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 3HP,1760RPM,3PH,60HZ,182TC,3628M,TEFC,F1

Features:
  • Standard NEMA BA dimension
  • Spring set brake
  • Power off operation manual release
  • NEMA Premium® Efficiency and inverter-ready
  • 230/460V brakes are connected in conduit box
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Technical Specs
P/N: VEBM3611T Key Specs
Item
MOTOR, 3HP, 1760RPM, 3PH, 60HZ, 182TC, 3628M, TEFC, F1
OEM
BALDOR
OEM #
VEBM3611T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
208V Amps
8.6
Ambient Temp C
40
Bearing-Drive-End
6206
Brake Rating
15
C-Dimension Inches
21.11
Country of Origin
USA
Design Code
B
Drive End Flange
C-Face
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
8.6-8.2/4.1
Fl Efficiency
89.5
Frame
182TC
Hertz
60
Horsepower
3
Insulation Class
F
Kva-Code
K
Motor Rpm 60Hz
1760
Mounting
C-Face Footless
Opposite End Bearing
6205
Phase
3
Poles
4
Power-Factor
77
Rpm
1760
Rpm Range
1701-1800
Service Factor
1.15
Spec. Number
36E049Y434G9
Voltage
208-230/460
Weight
81
Baldor-Reliance Motor, 3HP,1760RPM,3PH,60HZ,182TC,3628M,TEFC,F1

Features:
  • Standard NEMA BA dimension
  • Spring set brake
  • Power off operation manual release
  • NEMA Premium® Efficiency and inverter-ready
  • 230/460V brakes are connected in conduit box
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.
