OEM#: L3508TNew OEM Original Outright

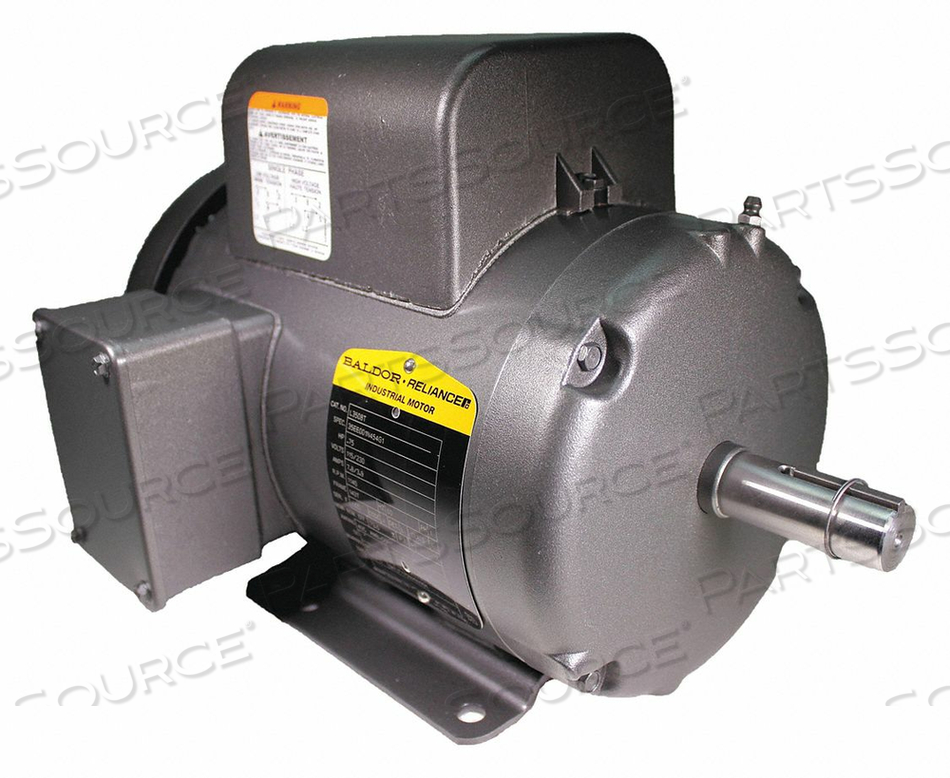

MOTOR 3/4 HP 1140 RPM 115/230V 143T TEFC by BALDOR
Your price:
$1,828.57 each
OEM#: L3508TMOTOR 3/4 HP 1140 RPM 115/230V 143T TEFC by BALDOR
New OEM Original Outright
Your price:
$1,828.57 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: L3508T Key Specs
Item
MOTOR 3/4 HP 1140 RPM 115/230V 143T TEFC
OEM
BALDOR
OEM #
L3508T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC031A
Country of Origin
USA
Duty
Continuous
Frame
143T
Full Load Amps
7.8/3.9
HP
3/4 hp
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
11 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
73.5 %
Number of Speeds
1
Overall Length
13 11/32 in
Phase
1
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
7/8 in
Shaft Length
2-1/4 in
Standards
CSA, UL
Voltage
115/230
