OEM#: L3503-50New OEM Original Outright

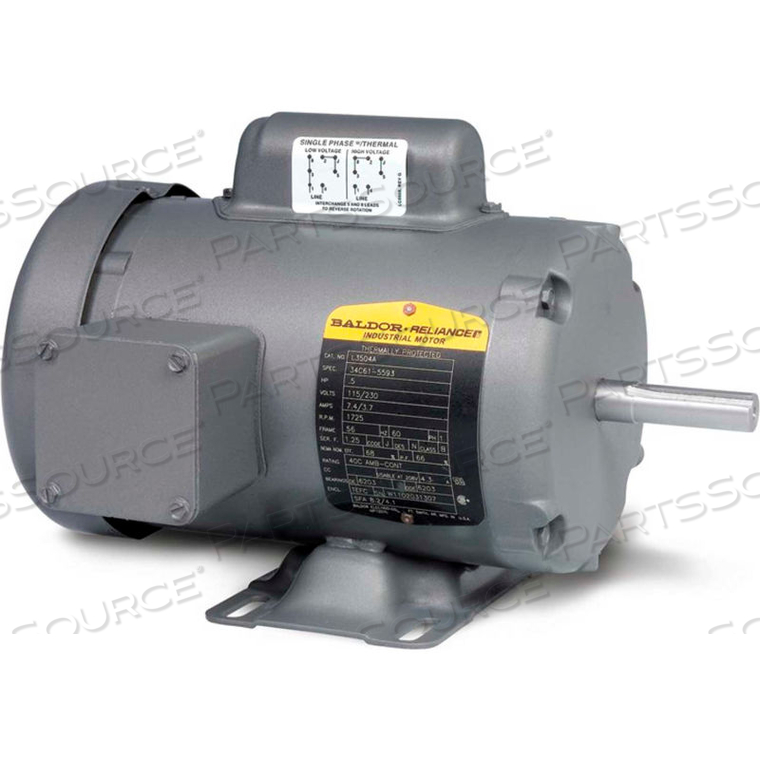

MOTOR, .5HP, MOTOR-RPMRPM, 1PH, 50HZ, 56, 3420L, TEFC by BALDOR
Your price:
$756.96 each
OEM#: L3503-50MOTOR, .5HP, MOTOR-RPMRPM, 1PH, 50HZ, 56, 3420L, TEFC by BALDOR
New OEM Original Outright
Your price:
$756.96 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, .5HP,MOTOR-RPMRPM,1PH,50HZ,56,3420L,TEFC
Features:
Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/- ½ 15% on voltage.
Features:
- Windings tied each end at every slot for rigidity
- Ball bearings
- High temperature insulation
- Copper windings
Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/- ½ 15% on voltage.
Technical Specs
P/N: L3503-50 Key Specs
Item
MOTOR, .5HP, MOTOR-RPMRPM, 1PH, 50HZ, 56, 3420L, TEFC
OEM
BALDOR
OEM #
L3503-50
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Bearing-Drive-End
6203
Bearing-Opp-Drive-End
6203
C-Dimension Inches
11.35
Country of Origin
USA
Design Code
N
Drive End Flange
Standard
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
6.6/3.3
Fl Efficiency
68
Frame
56
Hertz
50
Horsepower
1/2
Insulation Class
B
Is_Motor
Yes
Kva-Code
J
Motor Rpm 50Hz
2850
Mounting
Rigid
Nameplate Rpm
2850
Phase
1
Poles
2
Power-Factor
77
Rpm Range
1801-3000
Service Factor
1.25
Spec. Number
34K42W633
Voltage
110/220
Weight
27
Baldor-Reliance Motor, .5HP,MOTOR-RPMRPM,1PH,50HZ,56,3420L,TEFC
Features:
Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/- ½ 15% on voltage.
Features:
- Windings tied each end at every slot for rigidity
- Ball bearings
- High temperature insulation
- Copper windings
Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/- ½ 15% on voltage.
