OEM#: JSL425ANew OEM Original Outright

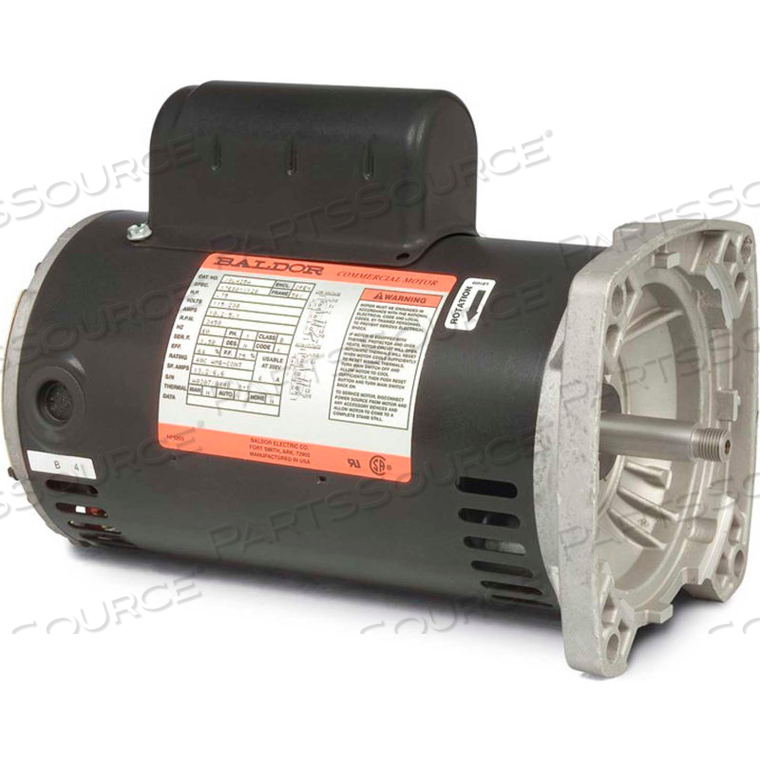

MOTOR, .75HP, 3450RPM, 1PH, 60HZ, 56Y, 1720L, OPEN, F1 by BALDOR

Your price:
$674.53 eachReady to ship
HomeBALDORJSL425A
MOTOR, .75HP, 3450RPM, 1PH, 60HZ, 56Y, 1720L, OPEN, F1 by BALDOR
MOTOR, .75HP, 3450RPM, 1PH, 60HZ, 56Y, 1720L, OPEN, F1 by BALDOR

OEM#: JSL425A
MOTOR, .75HP, 3450RPM, 1PH, 60HZ, 56Y, 1720L, OPEN, F1 by BALDOR

New OEM Original Outright
Your price:
$674.53 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, .75HP,3450RPM,1PH,60HZ,56Y,1720L,OPEN,F1

Features:
  • 40°C ambient
  • 60 hertz not reversible
  • Aluminum endplates
  • Ball bearings
  • Capacitor start
  • Stainless steel shaft extension
  • Terminal panel with quick connections on single phase
  • Automatic thermal overload
  • Ground screw in lead end endplate
  • Shaft slinger
Typical Applications:
Commercial pumps | Residential pumps | Swimming pool pumps, etc.

Technical Specs
P/N: JSL425A Key Specs
Item
MOTOR, .75HP, 3450RPM, 1PH, 60HZ, 56Y, 1720L, OPEN, F1
OEM
BALDOR
OEM #
JSL425A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
208V Amps
6
Ambient Temp C
40
Baldor Catalog Number
JSL425A
C-Dimension Inches
11.91
Country of Origin
USA
Design Code
N
Drive End Flange
POOL PUMP
Enclosure
OPEN
Enclosure Type
Open/Drip Proof
Fl Amps
10.2/5.1
Fl Efficiency
64
Frame
56Y
Hertz
60
Horsepower
3/4
Insulation Class
B
Kva-Code
K
Motor Rpm 60Hz
3450
Mounting
No Mounting
Phase
1
Poles
2
Power-Factor
75
Rpm
3450
Rpm Range
3001-3600
Service Factor
1.5
Service-Factor-Amps
13.2/6.6
Spec. Number
17E801X128
Thermal-Select
N
Voltage
115/230
Weight
26
Baldor-Reliance Motor, .75HP,3450RPM,1PH,60HZ,56Y,1720L,OPEN,F1

Features:
  • 40°C ambient
  • 60 hertz not reversible
  • Aluminum endplates
  • Ball bearings
  • Capacitor start
  • Stainless steel shaft extension
  • Terminal panel with quick connections on single phase
  • Automatic thermal overload
  • Ground screw in lead end endplate
  • Shaft slinger
Typical Applications:
Commercial pumps | Residential pumps | Swimming pool pumps, etc.
