OEM#: IDVSNM2333TNew OEM Original Outright

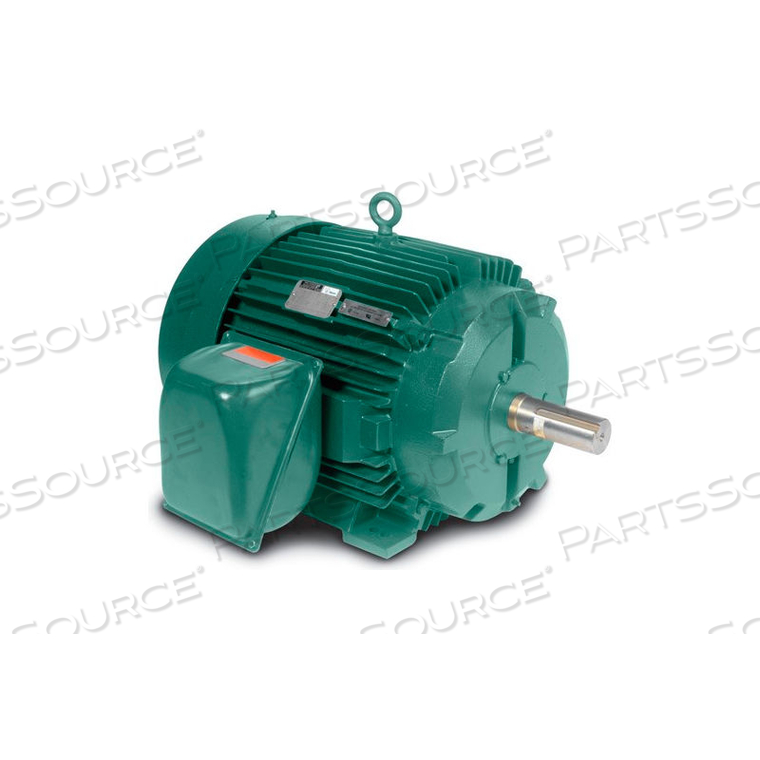

MOTOR, 15HP, 1775RPM, 3PH, 60HZ, 256TC, TENV, FOOT by BALDOR
Your price:
$7,571.33 each
OEM#: IDVSNM2333TMOTOR, 15HP, 1775RPM, 3PH, 60HZ, 256TC, TENV, FOOT by BALDOR
New OEM Original Outright
Your price:
$7,571.33 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 15HP,1775RPM,3PH,60HZ,256TC,TENV,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Technical Specs
P/N: IDVSNM2333T Key Specs
Item
MOTOR, 15HP, 1775RPM, 3PH, 60HZ, 256TC, TENV, FOOT
OEM
BALDOR
OEM #
IDVSNM2333T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Baldor Catalog Number
IDVSNM2333T
Brg-De-Afbma
45BC03J30X
Brg-Ode-Afbma
45BC03J30X
C-Dimension Inches
23.78
Constant-Torq-Hertz
41.66736111
Country of Origin
USA
Drive End Flange
C-Face
Duty
Continuous
Enclosure
TENV
Enclosure Type
Totally Enclosed
Frame
256TC
Horsepower
15
Insulation Class
F
Is_Motor
Yes
Magnetizing-Current
15.2/7.6
Maximum-Rpm
5400
Motor Rpm 60Hz
1775
Motor-Base-Amps
37.4/18.7
Motor-Base-Hp
15
Motor-Base-Hz
60
Motor-Base-Rpm
1775
Motor-Base-Volts
230/460
Motor-Max-Amps
34.8/17.4
Motor-Max-Hp
15
Motor-Max-Hz
90
Motor-Max-Rpm
2655
Motor-Max-Volts
230/460
Phase
3
Poles
4
Reliance Number
E09317AMFB020
Rotor-Inertia
2.16
Rpm
1775
Rpm Range
1701-1800
Service Factor
1
Spec. Number
P25G1150
Temp. Code
2
Type
P
Weight
331
Baldor-Reliance Motor, 15HP,1775RPM,3PH,60HZ,256TC,TENV,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
