OEM#: IDVSM4115TNew OEM Original Outright

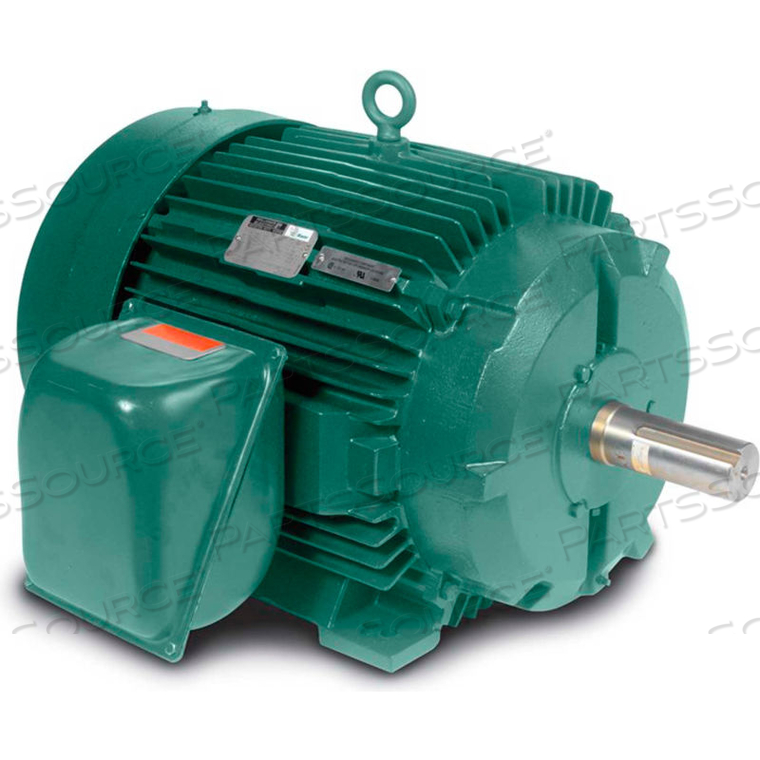

MOTOR, 50HP, 1800RPM, 3PH, 60HZ, 326T, TEFC, FOOT by BALDOR
Your price:
$16,910.43 each
OEM#: IDVSM4115TMOTOR, 50HP, 1800RPM, 3PH, 60HZ, 326T, TEFC, FOOT by BALDOR
New OEM Original Outright
Your price:
$16,910.43 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 50HP,1800RPM,3PH,60HZ,326T,TEFC,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Technical Specs
P/N: IDVSM4115T Key Specs
Item
MOTOR, 50HP, 1800RPM, 3PH, 60HZ, 326T, TEFC, FOOT
OEM
BALDOR
OEM #
IDVSM4115T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature (°C)
40
Baldor Catalog Number
IDVSM4115T
Bearing Drive End (AFBMA standard)
55BC03JP30X
Bearing Opposite Drive End (AFBMA standard)
55BC03JP30X
Constant-Torq-Hertz
1000 1
Country of Origin
USA
Dimension C (in)
30.44
Drive End Flange
Standard
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
326T
Horsepower
50
Insulation Class
F
Is Motor
Yes
Magnetizing-Current
53.2/26.6
Maximum Motor Amps
117/58.7
Maximum Motor Hertz
90
Maximum Motor Horsepower
50
Maximum Motor RPM
2670
Maximum Motor Volts
230/460
Maximum RPM
5400
Motor Base Amps
125/62.5
Motor Base Hertz
60
Motor Base Horsepower
50
Motor Base RPM
1780
Motor Base Volts
230/460
Motor RPM 60 Hertz
1775
Phase
3
Poles
4
RPM
1775
RPM Range
1701-1800
Reliance Number
W00982A A 005
Rotor Inertia
8.18
Service Factor
1
Spec. Number
P32G3226
Temperature Code
2
Type
P
Weight
627
Baldor-Reliance Motor, 50HP,1800RPM,3PH,60HZ,326T,TEFC,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
