OEM#: IDVSM4110TNew OEM Original Outright

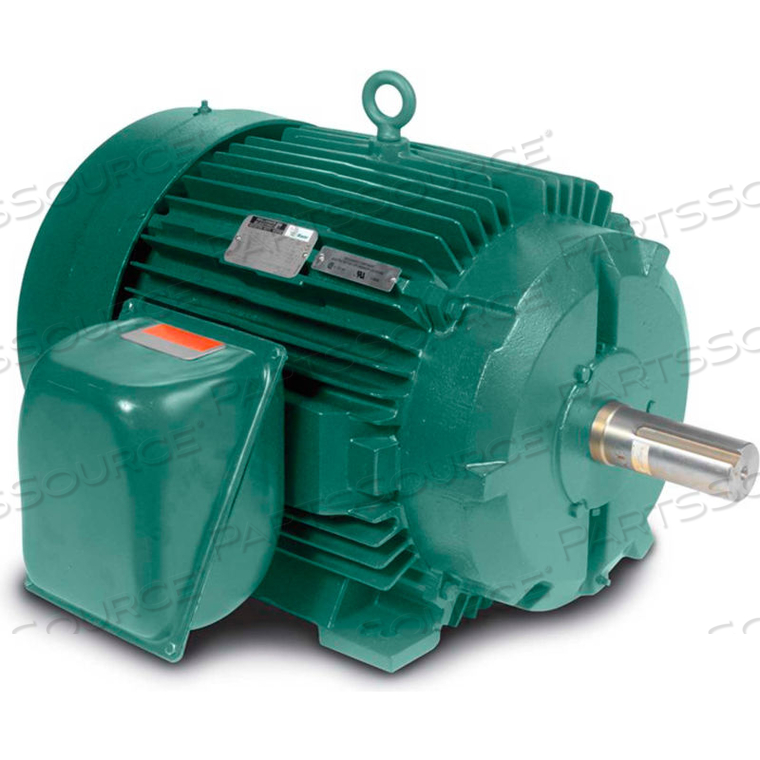

MOTOR, 40HP, 1800RPM, 3PH, 60HZ, 324T, TEFC, FOOT by BALDOR
Your price:
$12,627.89 each
OEM#: IDVSM4110TMOTOR, 40HP, 1800RPM, 3PH, 60HZ, 324T, TEFC, FOOT by BALDOR
New OEM Original Outright
Your price:
$12,627.89 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 40HP,1800RPM,3PH,60HZ,324T,TEFC,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Technical Specs
P/N: IDVSM4110T Key Specs
Item
MOTOR, 40HP, 1800RPM, 3PH, 60HZ, 324T, TEFC, FOOT
OEM
BALDOR
OEM #
IDVSM4110T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature (°C)
40
Baldor Catalog Number
IDVSM4110T
Bearing Drive End (AFBMA standard)
55BC03JP30X
Bearing Opposite Drive End (AFBMA standard)
55BC03JP30X
Constant-Torq-Hertz
41.66736111
Country of Origin
USA
Dimension C (in)
30.44
Drive End Flange
Standard
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
324T
Horsepower
40
Insulation Class
F
Is Motor
Yes
Magnetizing-Current
41.8/20.9
Maximum Motor Amps
94.8/47.4
Maximum Motor Hertz
90
Maximum Motor Horsepower
40
Maximum Motor RPM
2670
Maximum Motor Volts
230/460
Maximum RPM
5400
Motor Base Amps
99.6/49.8
Motor Base Hertz
60
Motor Base Horsepower
40
Motor Base RPM
1780
Motor Base Volts
230/460
Motor RPM 60 Hertz
1775
Phase
3
Poles
4
RPM
1775
RPM Range
1701-1800
Reliance Number
W00981A A 003
Rotor Inertia
8.18
Service Factor
1
Spec. Number
P32G3225
Temperature Code
2
Type
P
Weight
672
Baldor-Reliance Motor, 40HP,1800RPM,3PH,60HZ,324T,TEFC,FOOT,
Features:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
Features:
- Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
- Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
- Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
- Continuous constant torque to zero speed
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
