OEM#: EM4103TNew OEM Original Outright

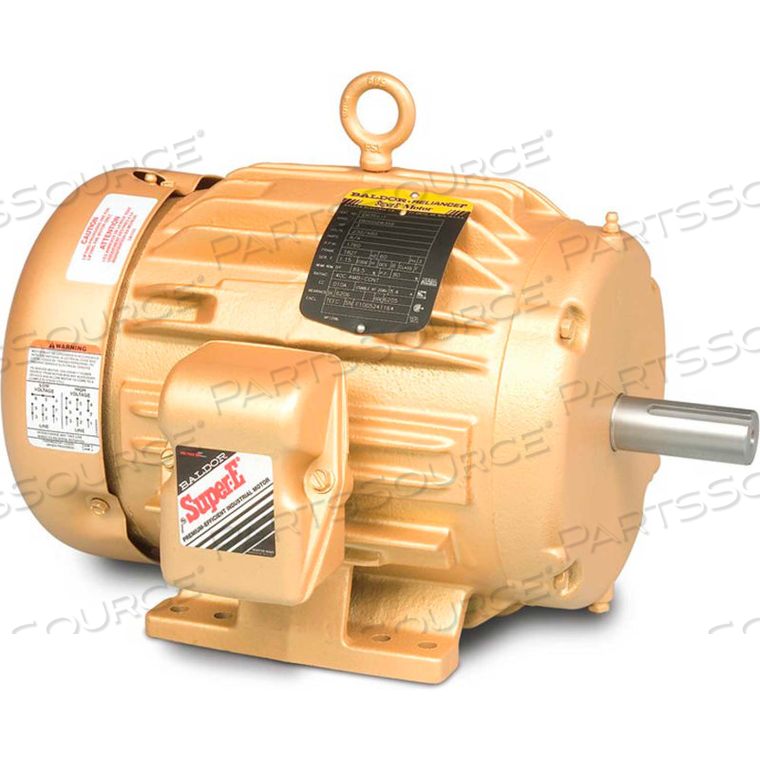

MOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 1046M, TEFC, F1 by BALDOR

Your price:
$5,374.81 eachReady to ship
HomeBALDOREM4103T
MOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 1046M, TEFC, F1 by BALDOR
MOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 1046M, TEFC, F1 by BALDOR

OEM#: EM4103T
MOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 1046M, TEFC, F1 by BALDOR

New OEM Original Outright
Your price:
$5,374.81 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 25HP,1770RPM,3PH,60HZ,284T,1046M,TEFC,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Technical Specs
P/N: EM4103T Key Specs
Item
MOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 1046M, TEFC, F1
OEM
BALDOR
OEM #
EM4103T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
208V Amps
63.3
Ambient Temperature (°C)
40
Bearing Drive End
6311
Bearing Opposite Drive End
6309
Country of Origin
USA
Design Code
B
Dimension C (in)
27.76
Doe-Code
010A
Drive End Flange
Standard
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
284T
Full Load Amps
60/30
Full Load Efficiency
93.6
Grease
POLYREX EM
Hertz
60
Horsepower
25
Insulation Class
F
Is Motor
Yes
Motor RPM 60 Hertz
1770
Mounting
Rigid
Nameplate RPM
1770
Phase
3
Poles
4
Power Factor
84
RPM Range
1701-1800
Service Factor
1.15
Spec. Number
10C151X209G1
Voltage
230/460
Weight
398
kVA-Code
G
Baldor-Reliance Motor, 25HP,1770RPM,3PH,60HZ,284T,1046M,TEFC,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
