OEM#: EM3554T-5New OEM Original Outright

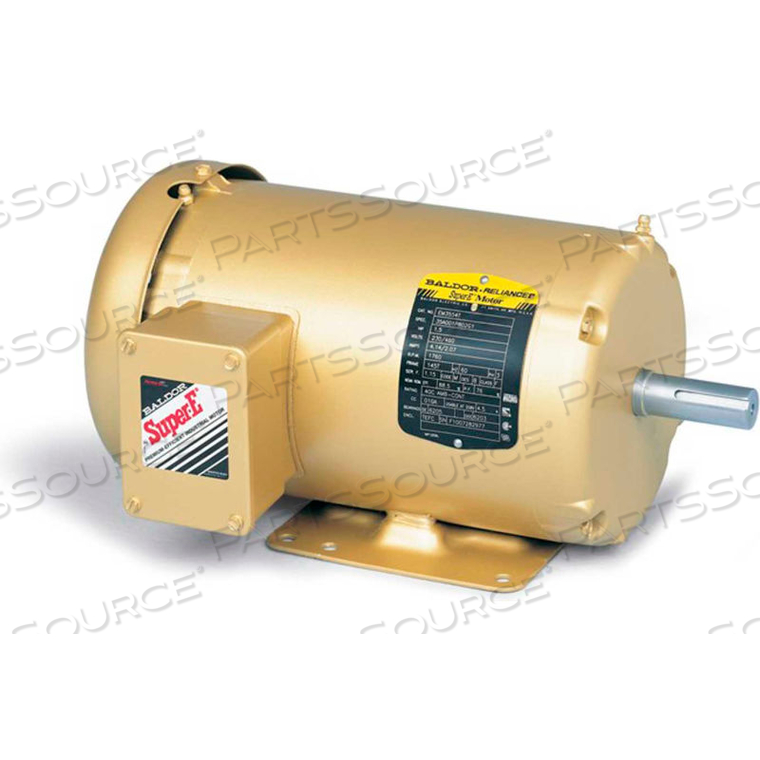

3-PHASE MOTOR, 1.5 HP, 1760 RPM, 145T FRAME, FOOT MOUNT, TEFC, 575V by BALDOR
Your price:
$739.93 each $965.00 Savings: $225.07 (23%)
OEM#: EM3554T-53-PHASE MOTOR, 1.5 HP, 1760 RPM, 145T FRAME, FOOT MOUNT, TEFC, 575V by BALDOR
New OEM Original Outright
Your price:
$739.93 each
$965.00 Savings: $225.07 (23%)
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance 3-Phase Motor, EM3554T-5, 1.5 HP, 1760 RPM, 145T Frame, Foot Mount, TEFC, 575 Volts
Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.
Features
Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.
Features
- Ball bearings
- Suitable for mounting any position
- Heavy gauge steel and cast iron frames
- Pumps, compressors, fans, conveyors, machine tools and other applications where 575 volt three phase power is available.
Technical Specs
P/N: EM3554T-5 Key Specs
Item
3-PHASE MOTOR, 1.5 HP, 1760 RPM, 145T FRAME, FOOT MOUNT, TEFC, 575V
OEM
BALDOR
OEM #
EM3554T-5
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature (°C)
40
Baldor Catalog Number
EM3554T-5
Bearing Drive End
6205
Bearing Opposite Drive End
6203
Design Code
B
Dimension C (in)
13.29
Drive End Bearing Size
6205
Drive End Flange
Standard
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
145T
Full Load Amps
1.8
Full Load Efficiency
86.5
Hertz
60
Horsepower
1 1/2
Insulation Class
F
Is Motor
Yes
Motor RPM 60 Hertz
1760
Mounting
Rigid
Nameplate RPM
1760
Opposite End Bearing Size
6203
Phase
3
Poles
4
Power Factor
73
RPM Range
1701-1800
Service Factor
1.15
Spec. Number
35AA001M887G1
Type
200-575V Motor
Voltage
575
Weight
39
kVA-Code
L
Baldor-Reliance 3-Phase Motor, EM3554T-5, 1.5 HP, 1760 RPM, 145T Frame, Foot Mount, TEFC, 575 Volts
Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.
Features
Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.
Features
- Ball bearings
- Suitable for mounting any position
- Heavy gauge steel and cast iron frames
- Pumps, compressors, fans, conveyors, machine tools and other applications where 575 volt three phase power is available.
