OEM#: EM3218T-GNew OEM Original Outright

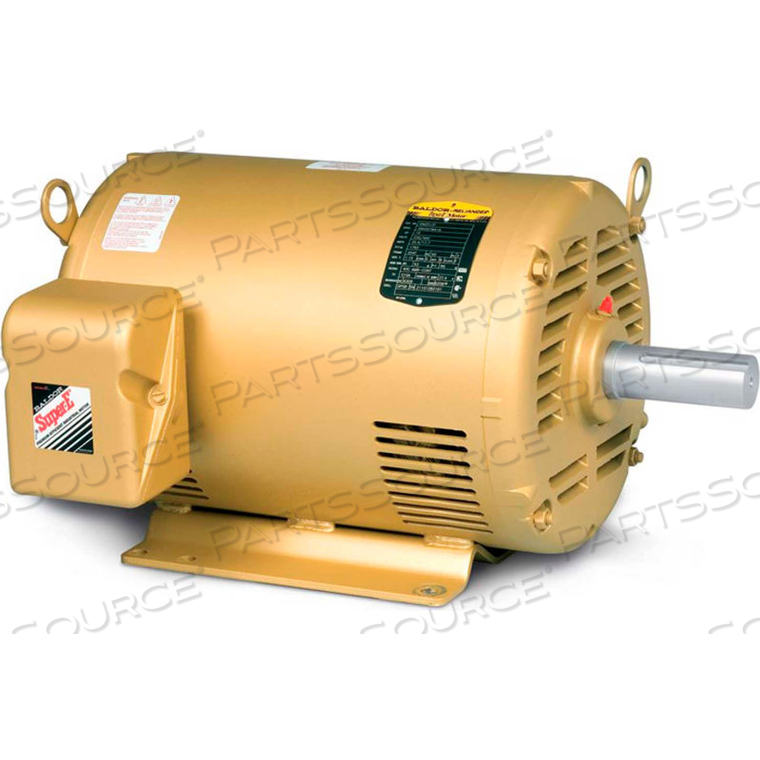

HVAC MOTOR, 3 PH, 5 HP, 208-230/460 V, 1750 RPM, OPSB, 184T FRAME by BALDOR
Your price:
$1,310.03 each
OEM#: EM3218T-GHVAC MOTOR, 3 PH, 5 HP, 208-230/460 V, 1750 RPM, OPSB, 184T FRAME by BALDOR
New OEM Original Outright
Your price:
$1,310.03 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance HVAC Motor, EM3218T-G, 3 PH, 5 HP, 208-230/460 V, 1750 RPM, OPSB, 184T Frame
Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.
Features
Baldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.
Features
- Class H insulated with AEGIS shaft grounding ring installed internally
- Regreasable ball bearings
- Dynamically balanced rotors for reduced vibration and quiet operation
- Suitable for mounting in any position
- Meet or exceed NEMA Premium efficiencies
- Inverter Ready
- 3 year warranty
- Heating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive.
Technical Specs
P/N: EM3218T-G Key Specs
Item
HVAC MOTOR, 3 PH, 5 HP, 208-230/460 V, 1750 RPM, OPSB, 184T FRAME
OEM
BALDOR
OEM #
EM3218T-G
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Approvals Or Certifications
CSA; CSA EEV; UR
Bearing Type
Ball
Design Code
B
Drive End Bearing Size
6205
Duty
Continuous
Enclosure
OPSB
Enclosure Type
Open/Drip Proof
Fl Amps
14-13.2/6.6
Fl Efficiency
89.5
Frame
184T
Frame Size
182T
Full Load Amps
6.6/14.0/13.2
Height Inches
13.75
Hertz
60
Horsepower
5
Insulation Class
H
Is_Motor
Yes
Length Inches
19
Length Less Shaft Inches
19
Motor Rpm 60Hz
1750
Mounting
Rigid
Opposite End Bearing
6205
Opposite End Bearing Size
6205
Overall Length
16.5
Phase
3
Rated Rpm
1750
Rotation
CCW/CW
Rpm Range
1701-1800
Service Factor
1.15
Shaft Diameter
1.125
Shaft Diameter Inches
0.875
Speeds
1
Thermal Protection
None
Voltage
208-230/460
Weight Lbs
67
Width Inches
13.75
Baldor-Reliance HVAC Motor, EM3218T-G, 3 PH, 5 HP, 208-230/460 V, 1750 RPM, OPSB, 184T Frame
