OEM#: EL3612TNew OEM Original Outright

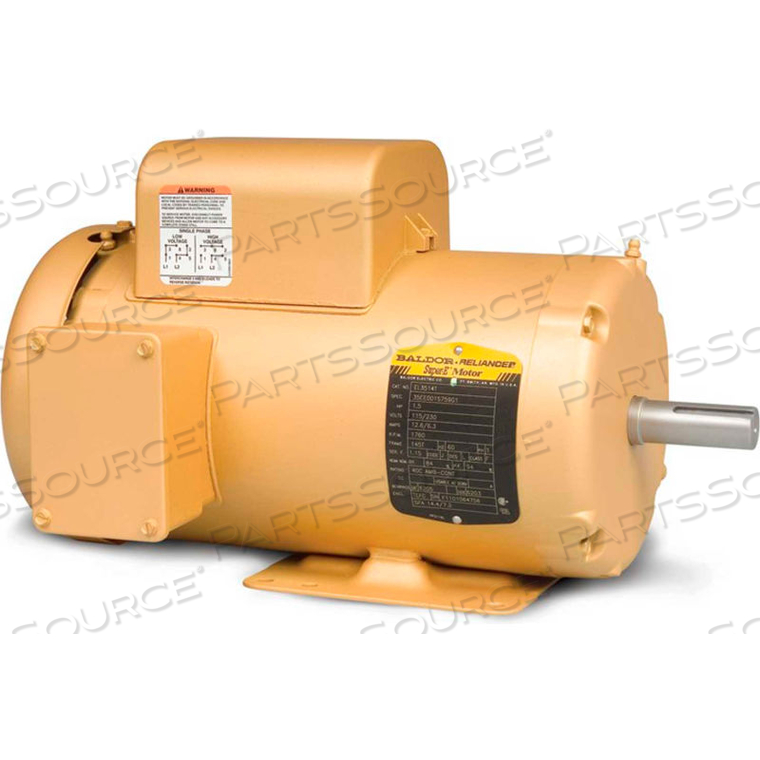

MOTOR, 5HP, 1735RPM, 1PH, 60HZ, 184T, 3646LC, TEFC, F1 by BALDOR
Your price:
$3,065.52 each
OEM#: EL3612TMOTOR, 5HP, 1735RPM, 1PH, 60HZ, 184T, 3646LC, TEFC, F1 by BALDOR
New OEM Original Outright
Your price:
$3,065.52 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 5HP,1735RPM,1PH,60HZ,184T,3646LC,TEFC,F1
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.
Features:
- Heavy gauge steel frames
- Ball bearings
- ISR® (Inverter Spike Resistant)copper windings
- Low-loss electrical grade laminations steel
- Three year warranty
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.
Technical Specs
P/N: EL3612T Key Specs
Item
MOTOR, 5HP, 1735RPM, 1PH, 60HZ, 184T, 3646LC, TEFC, F1
OEM
BALDOR
OEM #
EL3612T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Bearing-Drive-End
6206
Bearing-Opp-Drive-End
6205
C-Dimension Inches
18.06
Country of Origin
USA
Design Code
L
Drive End Flange
Standard
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
19.1
Fl Efficiency
86.5
Frame
182T
Hertz
60
Horsepower
5
Insulation Class
F
Is_Motor
Yes
Kva-Code
G
Motor Rpm 60Hz
1735
Mounting
Rigid
Nameplate Rpm
1735
Phase
1
Poles
4
Power-Factor
97
Rpm Range
1701-1800
Service Factor
1
Voltage
230
Weight
96
Baldor-Reliance Motor, 5HP,1735RPM,1PH,60HZ,184T,3646LC,TEFC,F1
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.
Features:
- Heavy gauge steel frames
- Ball bearings
- ISR® (Inverter Spike Resistant)copper windings
- Low-loss electrical grade laminations steel
- Three year warranty
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.
