OEM#: CM3542New OEM Original Outright

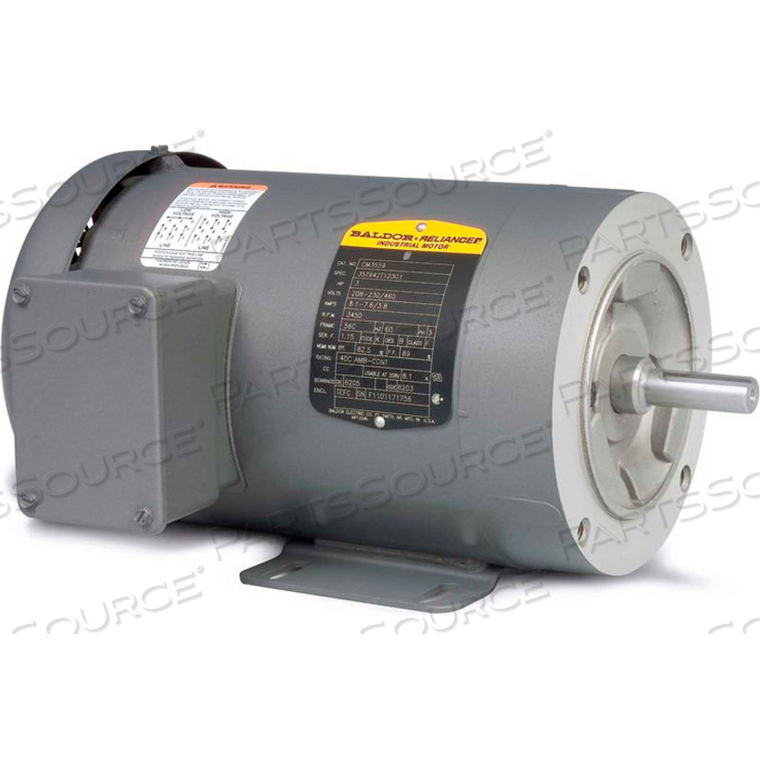

MOTOR, .75HP, 1725RPM, 3PH, 60HZ, 56C, 3420M, TEFC, F1 by BALDOR

Your price:
$742.89 eachReady to ship
HomeBALDORCM3542
MOTOR, .75HP, 1725RPM, 3PH, 60HZ, 56C, 3420M, TEFC, F1 by BALDOR
MOTOR, .75HP, 1725RPM, 3PH, 60HZ, 56C, 3420M, TEFC, F1 by BALDOR

OEM#: CM3542
MOTOR, .75HP, 1725RPM, 3PH, 60HZ, 56C, 3420M, TEFC, F1 by BALDOR

New OEM Original Outright
Your price:
$742.89 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, .75HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1

Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.

Technical Specs
P/N: CM3542 Key Specs
Item
MOTOR, .75HP, 1725RPM, 3PH, 60HZ, 56C, 3420M, TEFC, F1
OEM
BALDOR
OEM #
CM3542
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
208V Amps
3.6
Ambient Temperature (°C)
40
Bearing Drive End
6203
Bearing Opposite Drive End
6203
Country of Origin
USA
Design Code
B
Dimension C (in)
11.35
Drive End Flange
C-Face
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
56C
Full Load Amps
3.2-3/1.5
Full Load Efficiency
75.5
Hertz
60
Horsepower
3/4
Insulation Class
B
Is Motor
Yes
Motor RPM 60 Hertz
1725
Mounting
Rigid
Nameplate RPM
1725
Phase
3
Poles
4
Power Factor
60
RPM Range
1701-1800
Service Factor
1.25
Spec. Number
34A62-883
Voltage
208-230/460
Weight
26
kVA-Code
K
Baldor-Reliance Motor, .75HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1

Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.
